LICENSE PLATE LIGHT REMOVAL/INSTALLATION


id091800801100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)
(4)  Power liftgate rear switch (With power liftgate system) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION.)
(5)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

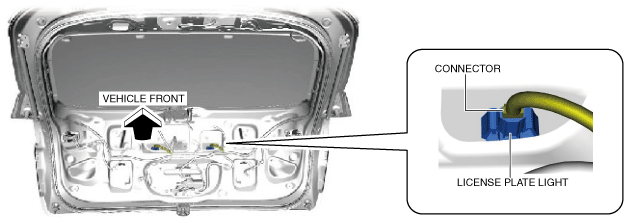

3.  Disconnect the connector.

ac8wzw00002359

Caution
•  Remove the license plate light from the liftgate while holding the license plate light on the lens side with a hand. Otherwise, the license plate light may fall off and be damaged.

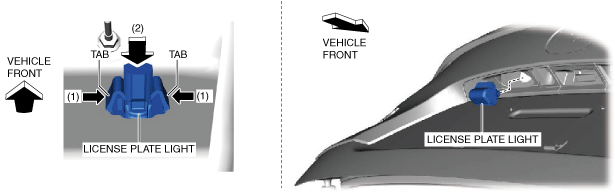

4.  While pressing the license light tabs in the directions of arrows (1) shown in the figure, press out the license light in the direction of arrow (2) and detach the license light tabs from the liftgate.

ac8wzw00002360

5.  Remove the license plate light.

6.  Install in the reverse order of removal.
