REAR ACCESSORY SOCKET REMOVAL/INSTALLATION

id092100900700

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

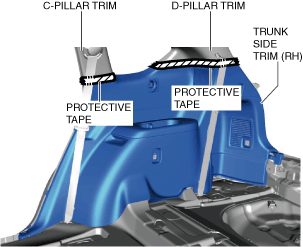

2.  To prevent scratches or damage, apply protective tape to the position shown in the figure.

ac8wzw00001090

3.  Remove the following parts.

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket(RH) (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

4.  Remove the cover.

ac8wzw00001091

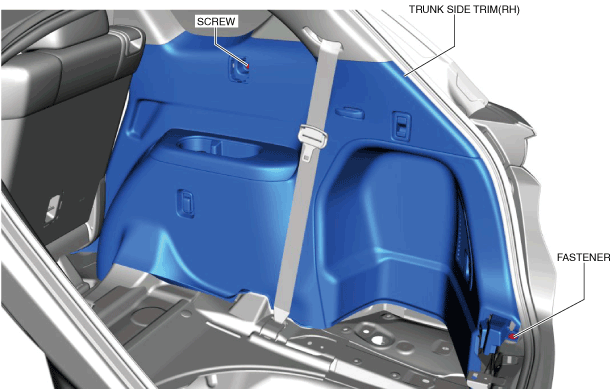

5.  Remove the screw.

ac8wzw00001092

6.  Remove the fastener.

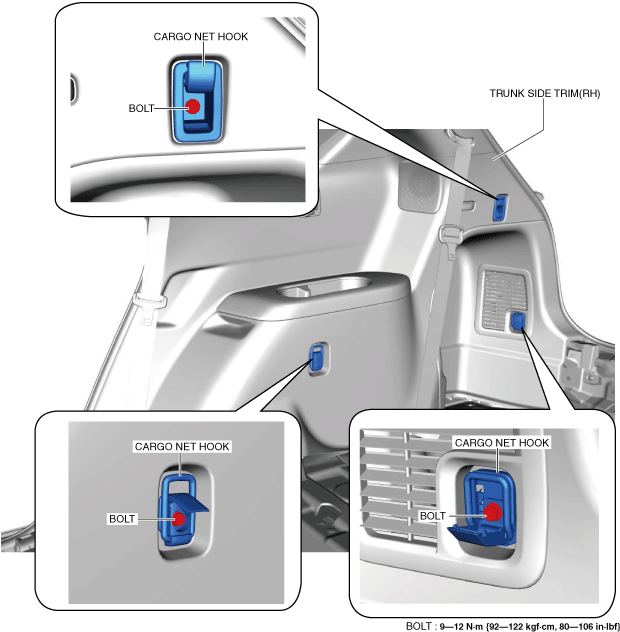

7.  Open the cargo net hook cover and remove the bolt.

ac8wzw00001093

8.  Remove the cargo net hooks.

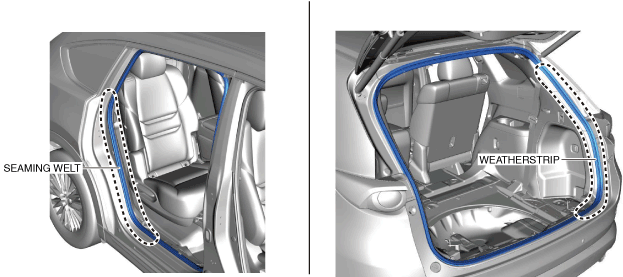

9.  Peel back the seaming welt and weatherstrip.

ac8wzw00001094

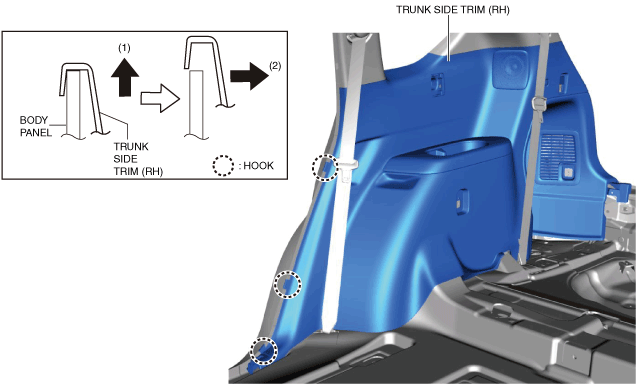

10.  Move the trunk side trim (RH) in the order of arrows (1), (2), shown in the figure to detach the body panel from the hooks.

ac8wzw00001095

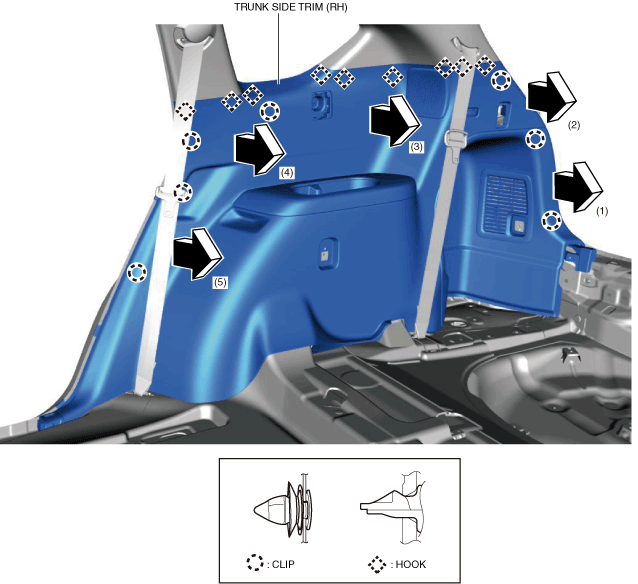

11.  Move the trunk side trim (RH) in the order of arrows (1), (2), (3), (4), and (5) shown in the figure while detaching the clips and hooks.

ac8wzw00001096

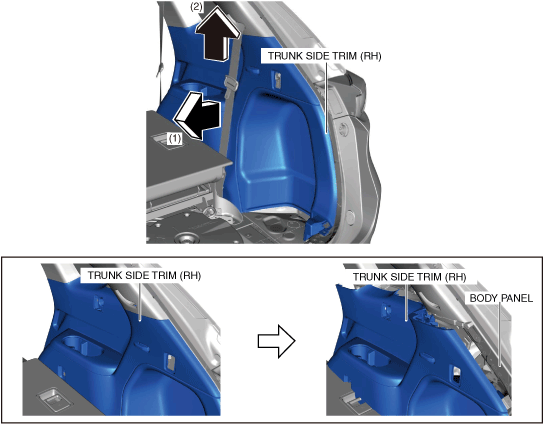

12.  Move the trunk side trim (RH) in the order of arrows (1) and (2) shown in the figure, pull away the trunk side trim (RH) enough to secure a space for a hand to be inserted between body panel and trunk side trim (RH).

ac8wzw00001097

13.  Disconnect the connector.

ac8wzw00000387

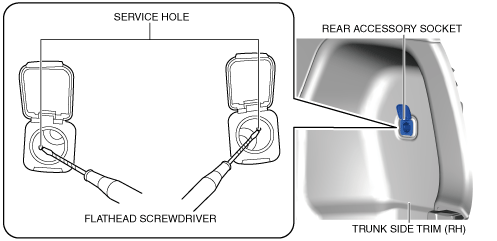

14.  Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

ac8wzw00000388

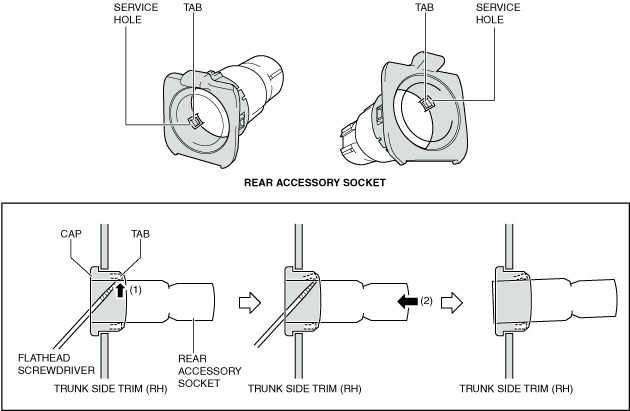

15.  While pressing the cap tab in the direction of the arrow (1) shown in the figure using a tape-wrapped flathead screwdriver, press the rear accessory socket in the direction of the arrow (2) to detach the cap tab from the rear accessory socket.

ac8wzw00000389

16.  Detach all the tabs of the cap from the rear accessory socket and remove the rear accessory socket from the cap.

17.  While pressing the cap tabs in the direction of the arrows (1) shown in the figure, press the cap in the direction of the arrow (2) to detach the cap tabs from the trunk side trim (RH).

ac8wzw00000390

18.  Remove the cap from the trunk side trim (RH).

19.  Install in the reverse order of removal.
