REAR BODY CONTROL MODULE (RBCM) REMOVAL/INSTALLATION

id094000002000

Caution

•  If configuration is not performed when the rear body control module (RBCM) is replaced with a new one, the vehicle specification information is not stored in the rear body control module (RBCM) and the system will not operate normally.

•  When performing configuration, it is necessary to read the vehicle specification information from the rear body control module (RBCM) before replacing it. Connect the M-MDS to the vehicle and perform vehicle identification before removing the rear body control module (RBCM). The vehicle specification information is temporarily stored in the M-MDS.

Note

•  The rear body control module (RBCM) prior to replacement stores the vehicle specification information.

•  A new rear body control module (RBCM) does not store any vehicle specification information.

•  If the vehicle specification information from the rear body control module (RBCM) prior to replacement cannot be read, perform the configuration using As-Built data.

1.  When replacing the rear body control module (RBCM), perform the configuration. (See REAR BODY CONTROL MODULE (RBCM) CONFIGURATION (USING READ/WRITE FUNCTION).)

2.  Operate the door lock actuator using the following procedure and deplete the energy stored in the backup power supply.

Note

•  If the energy stored in the backup power supply has already been depleted, the door lock actuator does not operate. As this does not indicate an improper procedure, continue to perform the procedure as indicated.

(1)  Remove the D.LOCK 25A fuse.

(2)  Close the front door (driver's side)

(3)  Repeat the lock/unlock operation of the door lock switch (driver's side) until all the door lock knobs do not move. (With door lock switch)

(4)  Repeat the lock/unlock operation of the door lock knob (driver's side) until the door lock knobs other than the driver's seat do not move. (Without door lock switch)

3.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

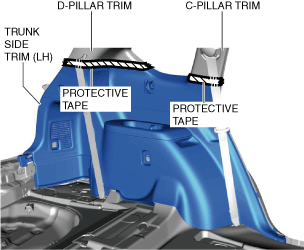

4.  To prevent scratches or damage, apply protective tape to the position shown in the figure.

ac8wzw00001106

5.  Remove the following parts.

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket (LH) (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

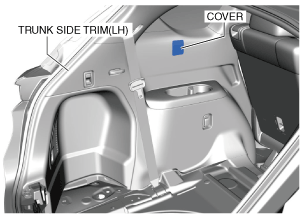

6.  Remove the cover.

ac8wzw00001107

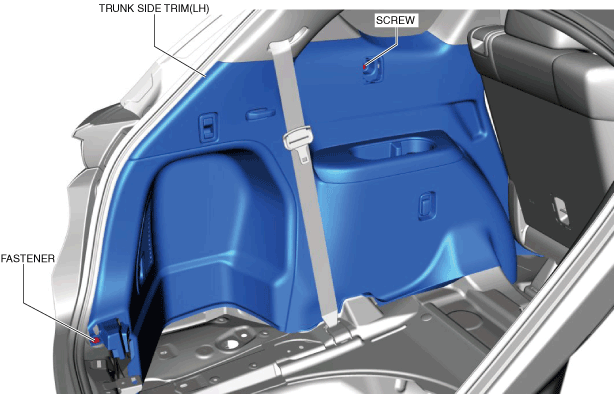

7.  Remove the screw.

ac8wzw00001108

8.  Remove the fastener.

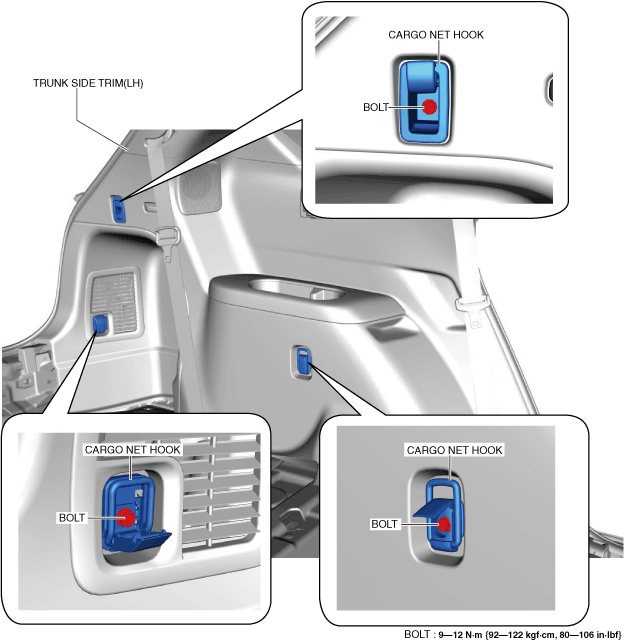

9.  Open the cargo net hook cover and remove the bolt.

ac8wzw00001109

10.  Remove the cargo net hooks.

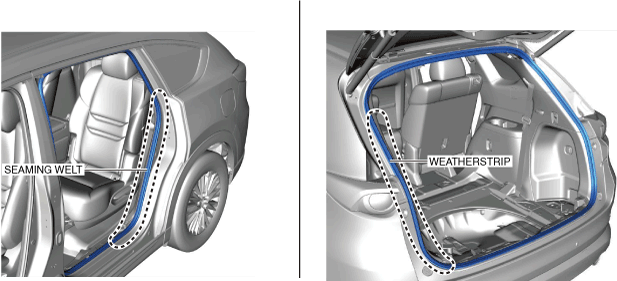

11.  Peel back the seaming welt and weatherstrip.

ac8wzw00001110

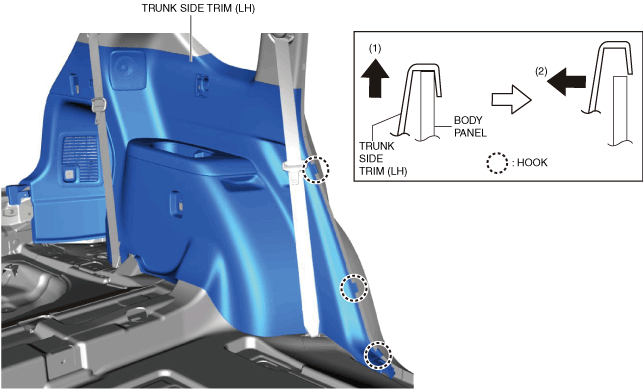

12.  Move the trunk side trim (LH) in the order of arrows (1), (2), shown in the figure to detach the body panel from the hooks.

ac8wzw00001111

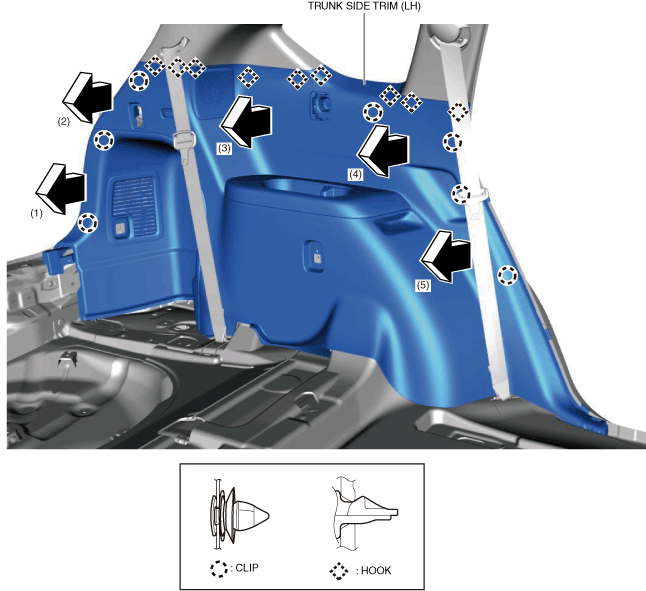

13.  Move the trunk side trim (LH) in the order of arrows (1), (2), (3), (4), and (5) shown in the figure while detaching the clips and hooks.

ac8wzw00001112

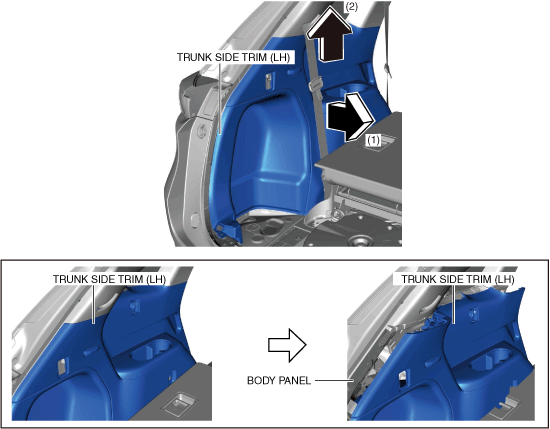

14.  Move the trunk side trim (LH) in the order of arrows (1) and (2) shown in the figure, pull away the trunk side trim (LH) enough to secure a space for a hand to be inserted between body panel and trunk side trim (LH).

ac8wzw00001113

15.  Disconnect the connectors shown in the figure.

ac8wzw00000393

16.  While pressing the rear body control module (RBCM) tab in the direction of arrow (1) shown in the figure, pull it in the direction of arrow (2) to detach the tab from the rear body control module (RBCM) bracket.

ac8wzw00000394

17.  Pull the rear body control module (RBCM) up in the direction of the arrow to detach the hook from the rear body control module (RBCM) bracket.

ac8wzw00000395

18.  Remove the rear body control module (RBCM).

19.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

ac8wzw00000396

20.  Move the screwdriver in the direction of arrow (1) shown in the figure and pull the connector in the direction of arrow (2) to detach its tab from the rear body control module (RBCM).

21.  Pull the connector in the direction of arrow (2) shown in the figure and remove it.

22.  Install in the reverse order of removal.

Note

•  If configuration cannot be performed by reading/writing of the vehicle specification information, perform the configuration using As-Built information after replacing the rear body control module (RBCM). (See REAR BODY CONTROL MODULE (RBCM) CONFIGURATION (USING AS-BUILT DATA).)
