POWER SYSTEM LOCATION INDEX

id092100491000

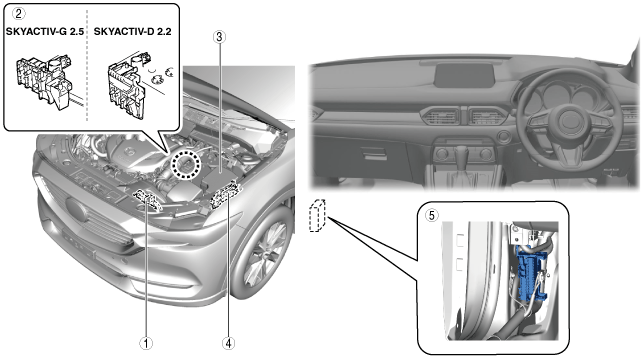

ac8wzw00004306

1	Front wiring harness protector No.1 (See FRONT WIRING HARNESS PROTECTOR REMOVAL/INSTALLATION.)
2	Main fuse (See MAIN FUSE REMOVAL/INSTALLATION.)
3	Relay and fuse block (See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION.) (See RELAY AND FUSE BLOCK DISASSEMBLY/ASSEMBLY.) (See RELAY AND FUSE BLOCK MIDDLE COVER DISASSEMBLY/ASSEMBLY.) (See FUSE SERVICE CAUTIONS.) (See RELAY LOCATION.) (See RELAY INSPECTION.)
4	Front wiring harness protector No.2 (See FRONT WIRING HARNESS PROTECTOR REMOVAL/INSTALLATION.)
5	Fuse block (See FUSE BLOCK REMOVAL/INSTALLATION.)

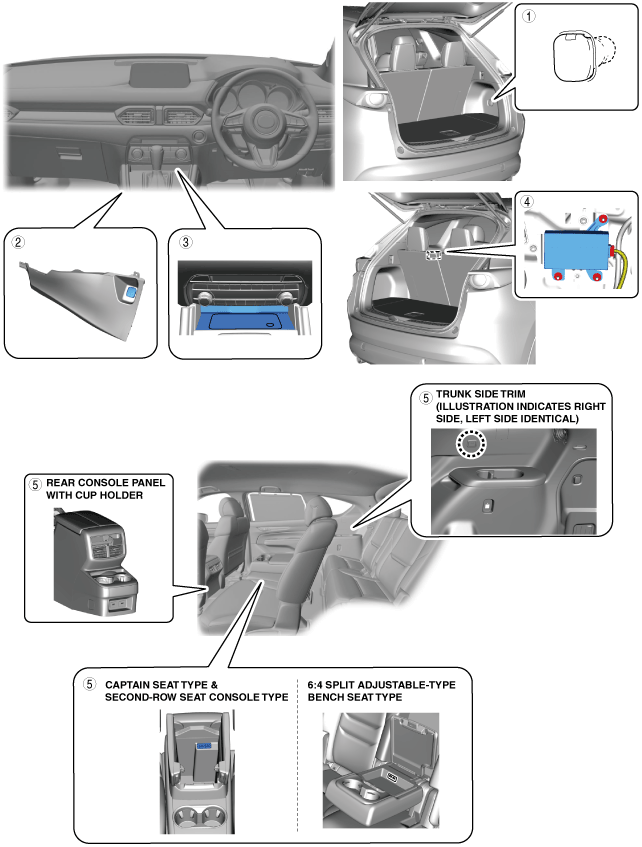

ac8wzw00004307

1	Rear accessory socket (See REAR ACCESSORY SOCKET REMOVAL/INSTALLATION.) (See REAR ACCESSORY SOCKET INSPECTION.)
2	Front accessory socket (See FRONT ACCESSORY SOCKET REMOVAL/INSTALLATION.) (See FRONT ACCESSORY SOCKET INSPECTION.)
3	Wireless charger (Qi) (See WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION.) (See WIRELESS CHARGER (Qi) INSPECTION.) (See WIRELESS CHARGER (Qi) DISABLING PROCEDURE.)
4	Backup power supply (See BACKUP POWER SUPPLY REMOVAL/INSTALLATION.) (See BACKUP POWER SUPPLY BRACKET REMOVAL/INSTALLATION.)
5	USB power outlet (See USB POWER OUTLET REMOVAL/INSTALLATION) (See USB POWER OUTLET INSPECTION)
