MULTI-INFORMATION DISPLAY

id092200073900


Outline

•  The multi-information display displays vehicle information in the instrument cluster.

Function/Construction

•  The instrument cluster configures the indication of the multi-information display based on the CAN signals sent from the related modules and displays it.

Information displayed in multi-information display

•  The information displayed by the multi-information display is as follows: Refer to the referenced section for details of the displayed information.

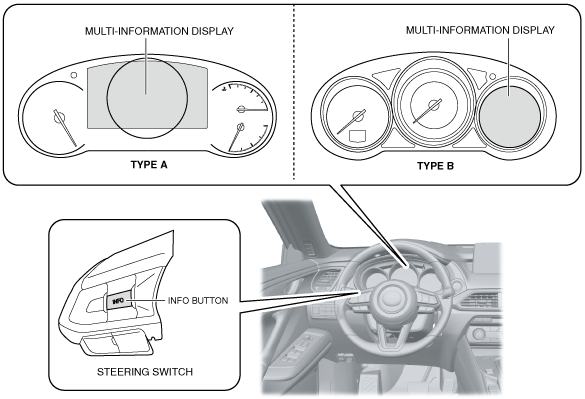

ac9wzn00001410

Display information

Reference
Ambient temperature display
(See AMBIENT TEMPERATURE DISPLAY.)
Engine coolant temperature gauge
(See ENGINE COOLANT TEMPERATURE GAUGE.)
Instantaneous fuel economy, average fuel economy, remaining distance to empty, direction of vehicle travel
(See TRIP COMPUTER INFORMATION SYSTEM.)
Message screen, warning screen, and system operation screen
(See Message screen, warning screen, and system operation screen.)
Gear position indication, shift position indicator light
(See GEAR POSITION INDICATION.)
(See SHIFT POSITION INDICATOR LIGHT.)
Fuel gauge
(See FUEL GAUGE.)
Odometer/tripmeter
(See ODOMETER/TRIPMETER.)
Maintenance monitor
(See MAINTENANCE MONITOR.)
Pre-set vehicle speed
(See CRUISE CONTROL SYSTEM [SKYACTIV-G 2.5T].)
Mazda radar cruise control (MRCC) system display (With MRCC)
(See MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM.)
(See MAZDA RADAR CRUISE CONTROL WITH STOP & GO FUNCTION (MRCC WITH STOP & GO FUNCTION).)
Lane-keep assist system (LAS) (With lane-keep assist system)
(See LANE-KEEP ASSIST SYSTEM.)
Lane departure warning system (LDWS) display (with lane departure warning system (LDWS))
(See LANE DEPARTURE WARNING SYSTEM (LDWS).)
Distance recognition support system (DRSS) display (With DRSS)
(See DISTANCE RECOGNITION SUPPORT SYSTEM (DRSS).)
Blind spot monitoring (BSM) system display (With BSM)
(See BLIND SPOT MONITORING (BSM) SYSTEM.)


Message screen, warning screen, and system operation screen

•  The instrument cluster displays the following screens in the multi-information display.
•  If the instrument cluster receives message display requests from multiple units, the screens are switched at certain intervals.

Screen display

Related unit

Reference/function
Engine oil level sensor
(See ENGINE OIL LEVEL WARNING LIGHT/ENGINE OIL LEVEL WARNING INDICATION [SKYACTIV-G 2.5T].)
Instrument cluster
(See HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED)/HIGH ENGINE COOLANT TEMPERATURE WARNING INDICATION/LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE).)
PCM (Global central configuration error or active air shutter system malfunction)
(See ON-BOARD DIAGNOSTIC SYSTEM [PCM (SKYACTIV-G 2.5T)].)
PCM
(See WRENCH INDICATOR LIGHT/WRENCH INDICATION [SKYACTIV-G 2.5T].)
Connectivity master unit (CMU)
(See MAINTENANCE MONITOR.)
PCM (Brake switch malfunction)
(See DRIVE-BY-WIRE CONTROL [SKYACTIV-G 2.5T].)
PCM
(See CHARGING SYSTEM WARNING LIGHT/WARNING INDICATION [SKYACTIV-G 2.5T].)
PCM
(See GENERATOR CONTROL [SKYACTIV-G 2.5T].)
PCM (i-ELOOP)
(See i-ELOOP [i-ELOOP].)
PCM (i-stop)
(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 2.5T].)
Electric power steering (EPS) control module
(See POWER STEERING MALFUNCTION INDICATOR LIGHT.)
Electric parking brake control module
(See ELECTRIC PARKING BRAKE.)
DSC HU/CM
(TPMS)
(See TIRE PRESSURE MONITORING SYSTEM (TPMS) [INDIRECT TIRE PRESSURE MONITORING SYSTEM (TPMS) (WITH TPMS SET SWITCH)].)
Laser sensor
(See SMART CITY BRAKE SUPPORT [FORWARD] (SCBS F).)
Radar unit
(See SMART BRAKE SUPPORT (SBS).)
Parking assist unit
(See SMART CITY BRAKE SUPPORT [REVERSE] (SCBS R).)
TCM
(See AUTOMATIC TRANSAXLE WARNING LIGHT.)
Start stop unit (Keyless entry system/Advanced keyless entry system)
(See KEYLESS ENTRY SYSTEM.)
(See ADVANCED KEYLESS ENTRY SYSTEM.)
Start stop unit (Push button start system)
(See PUSH BUTTON START SYSTEM [ADVANCED KEYLESS ENTRY SYSTEM].)
Forward sensing camera (FSC)
(See LANE-KEEP ASSIST SYSTEM.)
(See LANE DEPARTURE WARNING SYSTEM (LDWS).)
Forward sensing camera (FSC)
(See ADVANCED SMART CITY BRAKE SUPPORT (ADVANCED SCBS).)
(See SMART CITY BRAKE SUPPORT (SCBS) INDICATOR LIGHT/SMART CITY BRAKE SUPPORT (SCBS) WARNING LIGHT.)
(See LANE-KEEP ASSIST SYSTEM.)
(See LANE DEPARTURE WARNING SYSTEM (LDWS).)
(See MASTER WARNING LIGHT/MASTER WARNING INDICATION.)
Forward sensing camera (FSC)
(See SMART BRAKE SUPPORT (SBS).)
(See LANE-KEEP ASSIST SYSTEM.)
(See LANE DEPARTURE WARNING SYSTEM (LDWS).)
(See ADAPTIVE LED HEADLIGHTS.)
Forward sensing camera (FSC)
(See LANE-KEEP ASSIST SYSTEM.)
(See LANE DEPARTURE WARNING SYSTEM (LDWS).)
(See ADAPTIVE LED HEADLIGHTS.)
Forward sensing camera (FSC)/Radar unit
(See ADVANCED SMART CITY BRAKE SUPPORT (ADVANCED SCBS).)
(See SMART BRAKE SUPPORT (SBS).)
Parking assist unit
(See DRIVER ATTENTION ALERT SYSTEM.)
Radar unit (Mazda radar cruise control (MRCC) system)
(See MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM.)
(See MAZDA RADAR CRUISE CONTROL WITH STOP & GO FUNCTION (MRCC WITH STOP & GO FUNCTION).)
Radar unit
(See DISTANCE RECOGNITION SUPPORT SYSTEM (DRSS).)
(See MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM.)
(See MAZDA RADAR CRUISE CONTROL WITH STOP & GO FUNCTION (MRCC WITH STOP & GO FUNCTION).)
BSM
(See BLIND SPOT MONITORING (BSM) SYSTEM.)
Instrument cluster
(See LOW FUEL WARNING LIGHT/LOW FUEL WARNING INDICATION.)
Instrument cluster
(See TRIP COMPUTER INFORMATION SYSTEM.)
Instrument cluster
(See DOOR-AJAR WARNING INDICATION/LIFTGATE-AJAR WARNING INDICATION.)
4WD control module
(See 4WD WARNING LIGHT.)
Instrument cluster
(See LIGHTS-ON REMINDER WARNING INDICATION.)
Front body control module (FBCM) (washer fluid level warning system)
(See WASHER FLUID LEVEL WARNING SYSTEM.)


Switching of display content in multi-information display

•  The instrument cluster switches the display content of the multi-information display as follows based on the steering switch operation signal from the start stop unit.

TYPE A

am6zzn00005947

TYPE B

ac9uun00001787


Data reset of display content in multi-information display

Caution
•  Previously stored data cannot be recovered after it is reset. When resetting data, explain the reset items to the customer and reset the data after obtaining their consensus.
•  The following information displayed on the multi-information display can be reset all at once. Refer to the Workshop Manual for the detailed resetting procedure.
Trip computer-related information
―  Average fuel economy
―  TRIP value
