TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION [AW6AX-EL]


id0517j6801000


On-Vehicle Inspection

Caution
•  Water or foreign material entering the connector can cause a poor connection or corrosion. Be sure not to allow water or foreign material on the connector when disconnecting.
•  Do not damage the terminals.

1.  Disconnect the negative battery cable.

2.  Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)

3.  Remove the TCM. (See TCM REMOVAL/INSTALLATION [AW6AX-EL].)

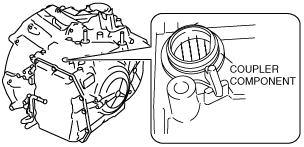

4.  Verify that there is no continuity between coupler component terminals B7 and GND, or B8 and GND.

ac9uuw00002729
ac9uuw00002730

•  If there is any malfunction, perform an off-vehicle inspection of TFT sensor. (See Off-Vehicle Inspection.)

5.  Install the TCM. (See TCM REMOVAL/INSTALLATION [AW6AX-EL].)

6.  Install the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)

7.  Connect the negative battery cable.


Off-Vehicle Inspection

Warning
•  A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until they are cool before replacing the ATF.
Caution
•  Water or foreign material entering the connector can cause a poor connection or corrosion. Be sure not to allow water or foreign material on the connector when disconnecting.
•  Do not damage the terminals.

1.  Disconnect the negative battery cable.

2.  Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)

3.  Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [AW6AX-EL].)

4.  Remove the oil cooler.

ac9uuw00001948

5.  Remove the oil pipe. (See OIL COOLER REMOVAL/INSTALLATION [AW6AX-EL].)

6.  Remove the control valve body. (See CONTROL VALVE BODY REMOVAL/INSTALLATION [AW6AX-EL].)

7.  Remove the TFT sensor. (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [AW6AX-EL].)

8.  Place the TFT sensor and a thermometer in ATF as shown in the figure, and heat the ATF gradually.

ac9uuw00002705

9.  Measure the resistance between the coupler component terminals B7and B8.

ac9uuw00002730

•  If there is any malfunction, replace the TFT sensor. (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [AW6AX-EL].)

Transaxle fluid temperature (TFT) sensor

ATF temperature (°C {°F})

Resistance (kilohm)

10 {50}
5.62—7.31
25 {77}
Approx. 3.5
110 {230}
0.22—0.27

10.  Install the TFT sensor. (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [AW6AX-EL].)

11.  Install the control valve body. (See CONTROL VALVE BODY REMOVAL/INSTALLATION [AW6AX-EL].)

12.  Install the oil pipe. (See OIL COOLER REMOVAL/INSTALLATION [AW6AX-EL].)

13.  Install the oil cooler. (See OIL COOLER REMOVAL/INSTALLATION [AW6AX-EL].)

14.  Add ATF to the specified level. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [AW6AX-EL].)

15.  Install the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)

16.  Connect the negative battery cable.
