ENTERTAINMENT LOCATION INDEX

id092000800100


Audio System

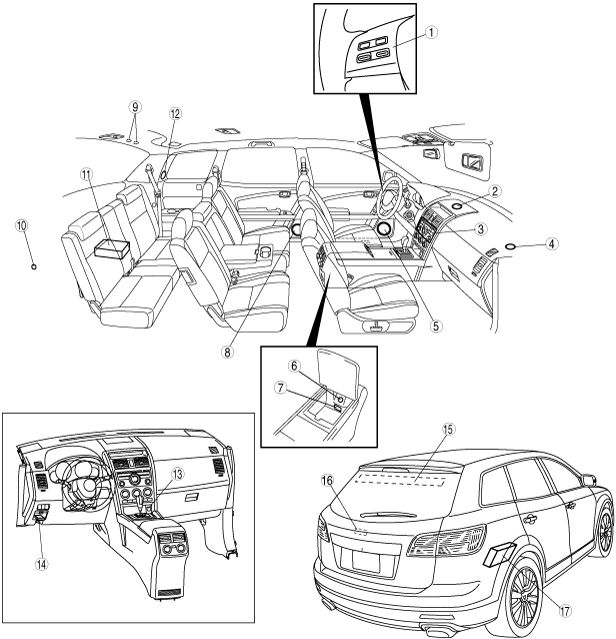

L.H.D.

ac9wzw00000318

1
Audio control switch
(See AUDIO CONTROL SWITCH REMOVAL/INSTALLATION.)
(See AUDIO CONTROL SWITCH INSPECTION.)
2
Center speaker (with Bose®)
(See CENTER SPEAKER REMOVAL/INSTALLATION.)
(See CENTER SPEAKER INSPECTION.)
3
Audio unit
(See AUDIO UNIT REMOVAL/INSTALLATION.)
(See AUDIO UNIT DISASSEMBLY/ASSEMBLY.)
(See ACTION ILLUMINATION ON/OFF SWITCHING.)
4
Front speaker (with Bose®)
(See FRONT SPEAKER REMOVAL/INSTALLATION.)
(See FRONT SPEAKER INSPECTION.)
Tweeter (without Bose®)
(See TWEETER REMOVAL/INSTALLATION.)
(See TWEETER INSPECTION.)
5
Front door speaker
(See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)
(See FRONT DOOR SPEAKER INSPECTION.)
6
Center accessory socket
(See ACCESSORY SOCKET REMOVAL/INSTALLATION.)
(See ACCESSORY SOCKET INSPECTION.)
7
Auxiliary jack
(See AUXILIARY JACK REMOVAL/INSTALLATION.)
(See AUXILIARY JACK INSPECTION.)
8
Rear door speaker
(See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)
(See REAR DOOR SPEAKER INSPECTION.)
9
Condenser
(See CONDENSER REMOVAL/INSTALLATION.)
10
Rear accessory socket
(See ACCESSORY SOCKET REMOVAL/INSTALLATION.)
(See ACCESSORY SOCKET INSPECTION.)
11
Bass-box (with Bose®)
(See BASS-BOX REMOVAL/INSTALLATION.)
(See BASS-BOX INSPECTION.)
12
Rear speaker (with Bose®)
(See REAR SPEAKER REMOVAL/INSTALLATION.)
(See REAR SPEAKER INSPECTION.)
13
Cigarette lighter
(See CIGARETTE LIGHTER REMOVAL/INSTALLATION.)
(See CIGARETTE LIGHTER INSPECTION.)
14
AudioPilot microphone (with Bose®)
(See AUDIOPILOT MICROPHONE REMOVAL/INSTALLATION.)
15
Glass antenna
(See GLASS ANTENNA INSPECTION.)
16
Noise filter
(See NOISE FILTER REMOVAL/INSTALLATION.)
(See NOISE FILTER INSPECTION.)
17
Audio amplifier (with Bose®)
(See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)
(See AUDIO AMPLIFIER CONFIGURATION.)

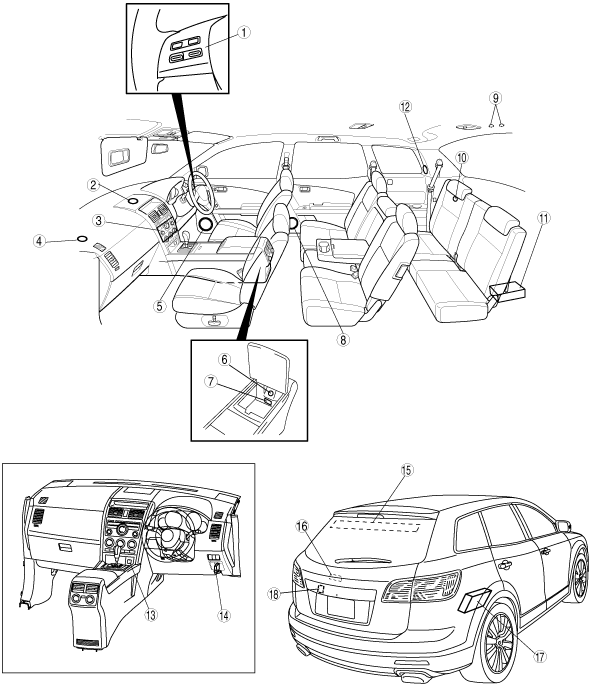

R.H.D.

ac9wzw00000445

1
Audio control switch
(See AUDIO CONTROL SWITCH REMOVAL/INSTALLATION.)
(See AUDIO CONTROL SWITCH INSPECTION.)
2
Center speaker (with Bose®)
(See CENTER SPEAKER REMOVAL/INSTALLATION.)
(See CENTER SPEAKER INSPECTION.)
3
Audio unit
(See AUDIO UNIT REMOVAL/INSTALLATION.)
(See AUDIO UNIT DISASSEMBLY/ASSEMBLY.)
(See ACTION ILLUMINATION ON/OFF SWITCHING.)
4
Front speaker (with Bose®)
(See FRONT SPEAKER REMOVAL/INSTALLATION.)
(See FRONT SPEAKER INSPECTION.)
Tweeter (without Bose®)
(See TWEETER REMOVAL/INSTALLATION.)
(See TWEETER INSPECTION.)
5
Front door speaker
(See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)
(See FRONT DOOR SPEAKER INSPECTION.)
6
Center accessory socket
(See ACCESSORY SOCKET REMOVAL/INSTALLATION.)
(See ACCESSORY SOCKET INSPECTION.)
7
Auxiliary jack
(See AUXILIARY JACK REMOVAL/INSTALLATION.)
(See AUXILIARY JACK INSPECTION.)
8
Rear door speaker
(See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)
(See REAR DOOR SPEAKER INSPECTION.)
9
Condenser
(See CONDENSER REMOVAL/INSTALLATION.)
10
Rear accessory socket
(See ACCESSORY SOCKET REMOVAL/INSTALLATION.)
(See ACCESSORY SOCKET INSPECTION.)
11
Bass-box (with Bose®)
(See BASS-BOX REMOVAL/INSTALLATION.)
(See BASS-BOX INSPECTION.)
12
Rear speaker (with Bose®)
(See REAR SPEAKER REMOVAL/INSTALLATION.)
(See REAR SPEAKER INSPECTION.)
13
Front accessory socket
(See ACCESSORY SOCKET REMOVAL/INSTALLATION.)
(See ACCESSORY SOCKET INSPECTION.)
14
AudioPilot microphone (with Bose®)
(See AUDIOPILOT MICROPHONE REMOVAL/INSTALLATION.)
15
Glass antenna
(See GLASS ANTENNA INSPECTION.)
16
Noise filter
(See NOISE FILTER REMOVAL/INSTALLATION.)
(See NOISE FILTER INSPECTION.)
17
Audio amplifier (with Bose®)
(See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)
(See AUDIO AMPLIFIER CONFIGURATION.)
18
Rear mount camera (with touch panel type audio)
(See REAR MOUNT CAMERA REMOVAL/INSTALLATION.)


Car-navigation System

ac9wzw00000765

1
GPS antenna
(See GPS ANTENNA REMOVAL/INSTALLATION.)
2
Car-navigation unit
(See CAR-NAVIGATION UNIT REMOVAL/INSTALLATION.)
3
Microphone
(See MICROPHONE REMOVAL/INSTALLATION.)
4
Audio control switch
(See AUDIO CONTROL SWITCH REMOVAL/INSTALLATION.)
(See AUDIO CONTROL SWITCH INSPECTION.)


Antenna Feeder

ac9wzw00000766

1
Front antenna feeder
(See FRONT ANTENNA FEEDER INSPECTION.)
2
GPS antenna feeder (with car-navigation system)
(See GPS ANTENNA FEEDER INSPECTION.)
3
Rear antenna feeder (without sunroof)
(See REAR ANTENNA FEEDER INSPECTION.)
4
Rear antenna feeder (with sunroof)
(See REAR ANTENNA FEEDER INSPECTION.)
