DSC/RSC LOCATION INDEX

id041800816000

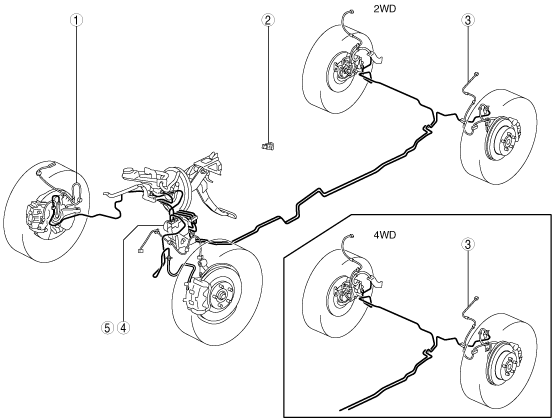

L.H.D.

ac9wzw00000858

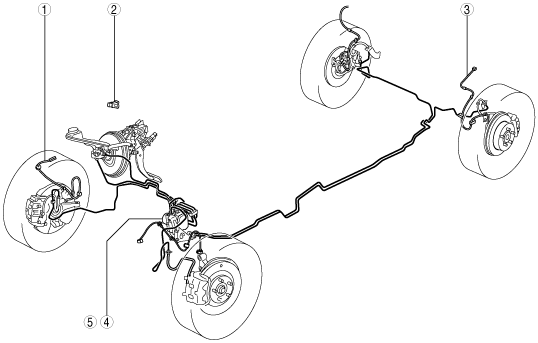

R.H.D.

ac9wzw00000859

1	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)
2	TCS OFF switch (See TCS OFF SWITCH REMOVAL/INSTALLATION.) (See TCS OFF SWITCH INSPECTION.)
3	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [2WD].) (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [4WD].) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION [2WD].) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION [4WD].)
4	DSC/RSC HU/CM (See DSC/RSC SYSTEM WIRING DIAGRAM.) (See DSC/RSC SYSTEM INSPECTION.) (See DSC/RSC HU/CM REMOVAL/INSTALLATION [L.H.D.].) (See DSC/RSC HU/CM REMOVAL/INSTALLATION [R.H.D.].) (See DSC/RSC HU AIR BLEEDING.) (See DSC/RSC SENSOR INITIALIZATION PROCEDURE.) (See DSC/RSC HU/CM INSPECTION.)
5	Brake fluid pressure sensor (built-into DSC/RSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION.)
