PARKING BRAKE SYSTEM LOCATION INDEX

id041200700100

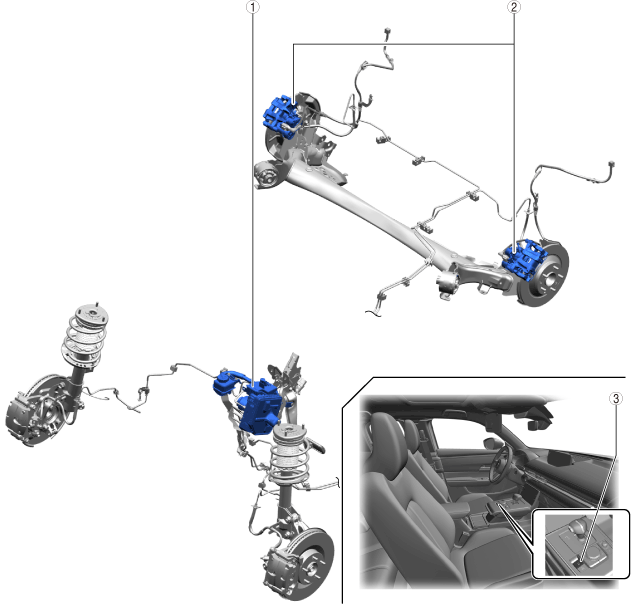

L.H.D.

a30zzw00003440

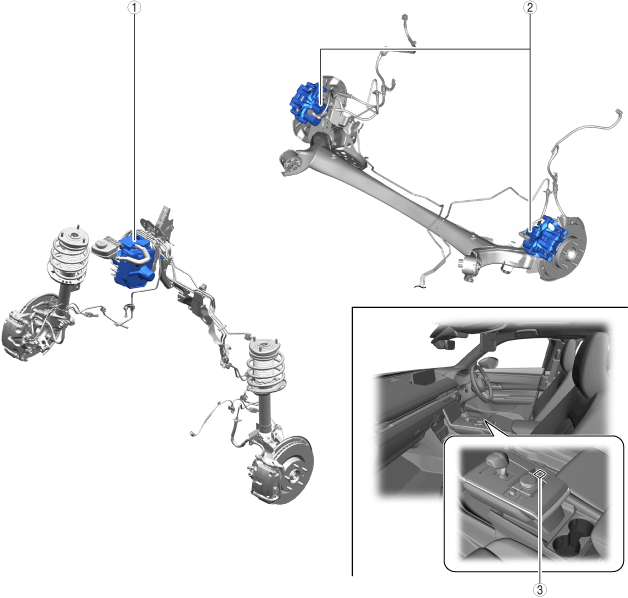

R.H.D.

a30jjw00000626

1	Electronically controlled brake unit (See ELECTRONICALLY CONTROLLED BRAKE UNIT REMOVAL/INSTALLATION [L.H.D.].) (See ELECTRONICALLY CONTROLLED BRAKE UNIT REMOVAL/INSTALLATION [R.H.D.].) (See ELECTRONICALLY CONTROLLED BRAKE UNIT INSPECTION.) (See ELECTRONICALLY CONTROLLED BRAKE UNIT RELATED PARTS SENSOR INITIALIZATION PROCEDURE.) (See MAINTENANCE MODE.)
2	Electric parking brake motor gear unit (See ELECTRIC PARKING BRAKE MOTOR GEAR UNIT REMOVAL/INSTALLATION.) (See ELECTRIC PARKING BRAKE MOTOR GEAR UNIT INSPECTION.) (See ELECTRIC PARKING BRAKE FORCED RELEASE PROCEDURE.)
3	Electric parking brake switch (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.) (See ELECTRIC PARKING BRAKE SWITCH INSPECTION.)
