ELECTRONICALLY CONTROLLED BRAKE SYSTEM LOCATION INDEX

id041900700100

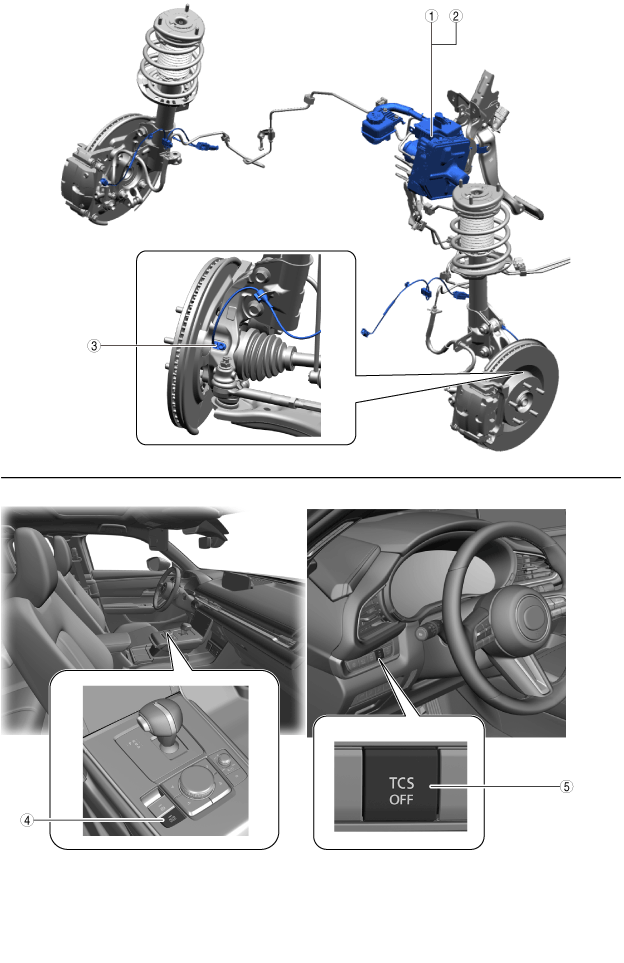

Vehicle Front Side

L.H.D.

a30zzw00004317

1	Electronically controlled brake unit (See ELECTRONICALLY CONTROLLED BRAKE UNIT REMOVAL/INSTALLATION [L.H.D.].) (See ELECTRONICALLY CONTROLLED BRAKE UNIT INSPECTION.) (See ELECTRONICALLY CONTROLLED BRAKE UNIT RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)
2	Brake fluid pressure sensor (built-into electronically controlled brake unit) (See BRAKE FLUID PRESSURE SENSOR INSPECTION.) (See ELECTRONICALLY CONTROLLED BRAKE UNIT RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)
3	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)
4	AUTO HOLD switch (See AUTOHOLD SWITCH REMOVAL/INSTALLATION.) (See AUTOHOLD SWITCH INSPECTION.)
5	TCS OFF switch (See TCS OFF SWITCH REMOVAL/INSTALLATION.) (See AUTOHOLD SWITCH INSPECTION.)

R.H.D.

a30zzw00005646

1	Electronically controlled brake unit (See ELECTRONICALLY CONTROLLED BRAKE UNIT REMOVAL/INSTALLATION [R.H.D.].) (See ELECTRONICALLY CONTROLLED BRAKE UNIT INSPECTION.) (See ELECTRONICALLY CONTROLLED BRAKE UNIT RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)
2	Brake fluid pressure sensor (built-into electronically controlled brake unit) (See BRAKE FLUID PRESSURE SENSOR INSPECTION.) (See ELECTRONICALLY CONTROLLED BRAKE UNIT RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)
3	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)
4	AUTO HOLD switch (See AUTOHOLD SWITCH REMOVAL/INSTALLATION.) (See AUTOHOLD SWITCH INSPECTION.)
5	TCS OFF switch (See TCS OFF SWITCH REMOVAL/INSTALLATION.) (See AUTOHOLD SWITCH INSPECTION.)

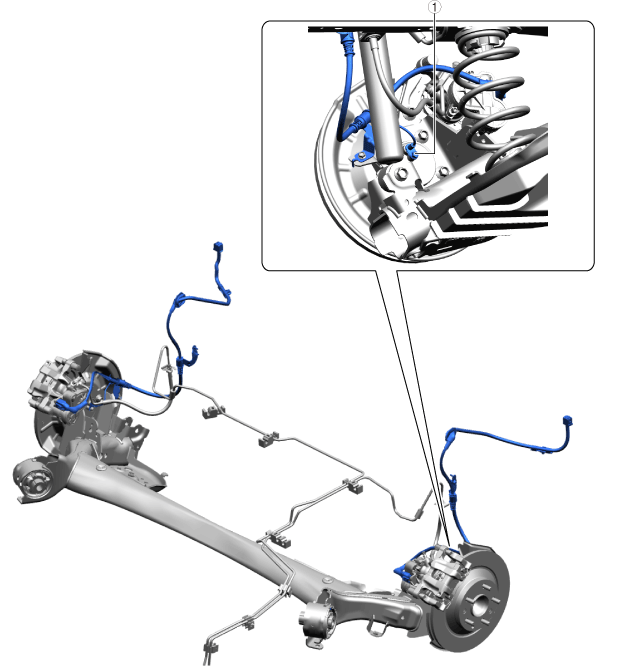

Vehicle Rear Side

a30zzw00004318

1	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION.)
