DTC B152E:15 [DASH-ELECTRICAL SUPPLY UNIT]


id0702k8708500

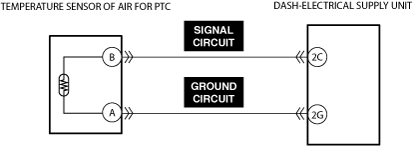

Outline

System malfunction location

Temperature sensor of air for PTC circuit malfunction

Detection condition
•  The dash-electrical supply unit detects an open circuit in the temperature sensor of air for PTC.
Fail-safe
•  Fixes the humidity sensor temperature input value at 25 °C {77 °F} and performs control.
Possible cause
•  Temperature sensor of air for PTC connector or terminal malfunction
•  Dash-electrical supply unit connector or terminal malfunction
•  Open circuit in temperature sensor of air for PTC signal circuit
•  Open circuit in temperature sensor of air for PTC ground circuit
•  Temperature sensor of air for PTC malfunction
•  Dash-electrical supply unit malfunction


Diagnostic Procedure

Step

Inspection

Results

Action

1
INSPECT TEMPERATURE SENSOR OF AIR FOR PTC CONNECTOR FOR MALFUNCTION
•  Inspect the applicable connector and terminal.
•  Are the connector and terminal normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
2
INSPECT DASH-ELECTRICAL SUPPLY UNIT CONNECTOR FOR MALFUNCTION
•  Inspect the applicable connector and terminal.
•  Are the connector and terminal normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
3
INSPECT TEMPERATURE SENSOR OF AIR FOR PTC SIGNAL CIRCUIT FOR OPEN CIRCUIT
•  Inspect the applicable circuit for an open circuit.
•  Is the circuit normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
4
INSPECT TEMPERATURE SENSOR OF AIR FOR PTC GROUND CIRCUIT FOR OPEN CIRCUIT
•  Inspect the applicable circuit for an open circuit.
•  Is the circuit normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.
5
INSPECT TEMPERATURE SENSOR OF AIR FOR PTC FOR MALFUNCTION
•  Is the part normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification.

Repair completion verification 1
VERIFY THAT VEHICLE IS REPAIRED
•  Install/connect the part removed/disconnected during the troubleshooting procedure.
•  Clear the DTC recorded in the memory.
•  Perform the DTC inspection for dash-electrical supply unit.
•  Is the same DTC displayed?
Yes
Refer to the CAN (controller area network) malfunction diagnosis flow to inspect for a CAN communication error.
If the CAN communication is normal, perform the diagnosis from Step 1.
•  If the malfunction is not resolved, replace the dash-electrical supply unit, then go to the next step.
No
Go to the next step.
Repair completion verification 2
VERIFY IF OTHER DTCs ARE DISPLAYED
•  Perform the DTC inspection.
•  Is a DTC displayed?
Yes
Repair the malfunctioning location according to the applicable DTC troubleshooting.
No
DTC troubleshooting completed.
