REAR CENTER SEAT BELT REMOVAL/INSTALLATION

id081100700600

Caution

•  If the retractor is disassembled, it will not operate correctly due to looseness and excessive play of the internal parts, therefore, do not disassemble the retractor.

Note

•  The rear center seat belt is built in to the rear seat back.

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear buckle (LH) (See REAR BUCKLE REMOVAL/INSTALLATION.)

(3)  Rear center seat belt anchor

(4)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(5)  Rear seat back frame (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.)

3.  Remove the rear center seat belt from the guide.

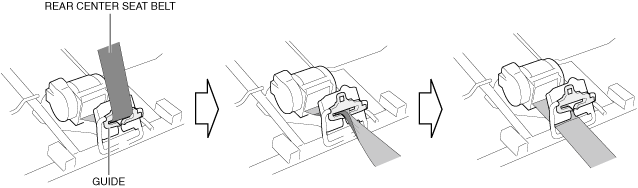

a30zzw00002574

4.  Remove the nuts.

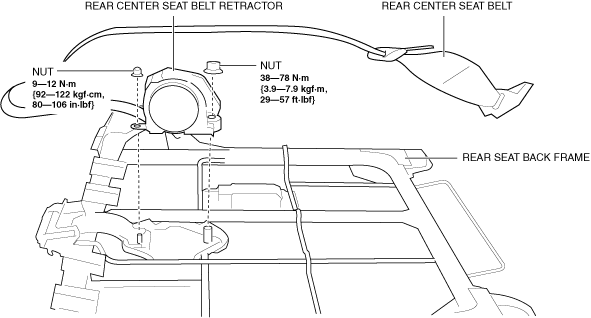

a30zzw00002575

5.  Remove the rear center seat belt retractor from the rear seat back frame.

6.  Remove the rear center seat belt.

7.  Install in the reverse order of removal.
