FRONT OUTER HANDLE REMOVAL/INSTALLATION

id091400200300

Note

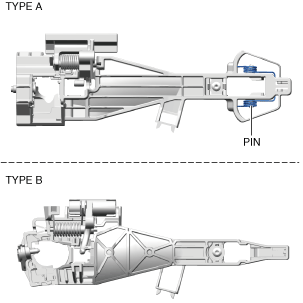

•  The type of the front outer handle can be identified by its shape.

a30zzw00007418

―  Type A: With pin (See TYPE A)

―  Type B: No pin (See TYPE B)

TYPE A

Driver's side

1.  Fully close the front door glass.

2.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts.

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

(3)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(4)  Front inner handle (See FRONT INNER HANDLE REMOVAL/INSTALLATION.)

(5)  Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

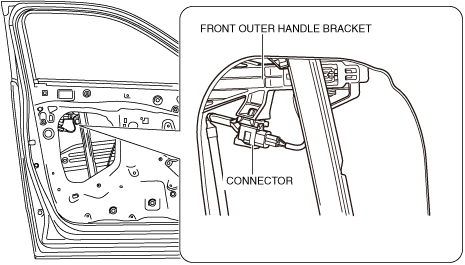

4.  Disconnect the connectors. (With advanced keyless entry system)

a30zzw00002579

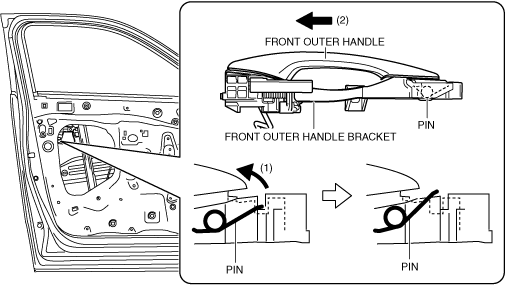

5.  While pressing the front outer handle bracket pin in the direction of arrow (1) shown in the figure, pull the front outer handle in the direction of arrow (2), and detach the front outer handle bracket pin from the front outer handle.

a30zzw00002580

6.  Remove the front outer handle in the direction of the arrow shown in the figure. (See Front outer handle installation note.)

a30zzw00002581

7.  Remove the service hole cover.

a30zzw00002582

8.  Loosen the screw.

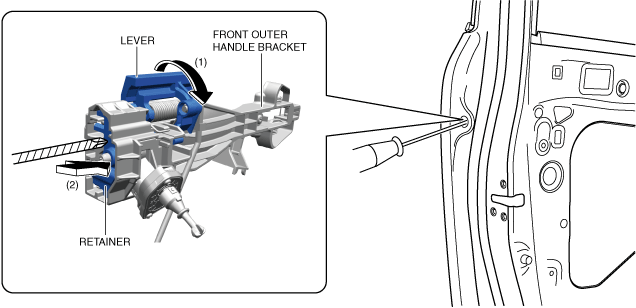

9.  While moving the lever in the direction of arrow (1) shown in the figure, push the retainer in the direction of arrow (2) using a tape-wrapped screwdriver, and then secure the lever.

a30zzw00002583

10.  Remove the cap. (See Cap installation note.)

a30zzw00002584

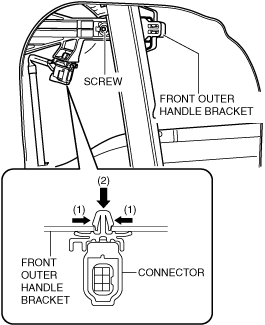

11.  While pressing the tabs of the clip in the direction of arrows (1) shown in the figure, pull the connector in the direction of arrow (2) to detach it from the front outer handle bracket. (With advanced keyless entry system)

a30zzw00002585

12.  Loosen the screw.

Note

•  The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.

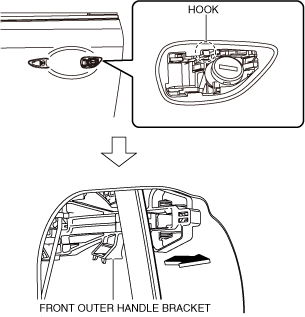

13.  Pull the front outer handle bracket in the direction of the arrow shown in the figure and detach the front outer handle bracket hook from the body.

a30zzw00002586

14.  Remove the front outer handle bracket and front door key cylinder as a single unit.

15.  Remove the front door key cylinder. (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)

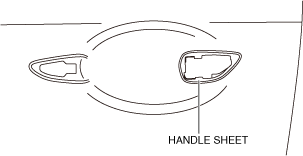

16.  Remove the handle sheet.

a30zzw00002587

17.  Install in the reverse order of removal.

Cap installation note

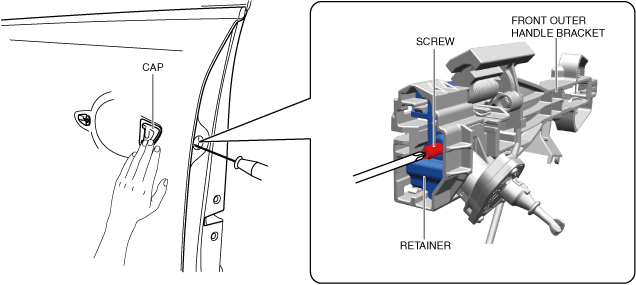

1.  Tighten the screw while holding the cap, and return the retainer to its original position.

a30zzw00002588

Front outer handle installation note

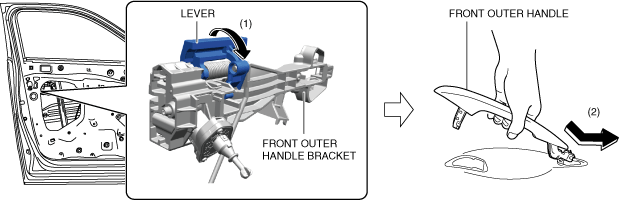

1.  While holding the front outer handle bracket, move the lever in the direction of arrow (1) shown in the figure, and attach the front outer handle in the direction of arrow (2).

a30zzw00002589

Passenger's side

1.  Fully close the front door glass.

2.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts.

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(3)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(4)  Front inner handle (See FRONT INNER HANDLE REMOVAL/INSTALLATION.)

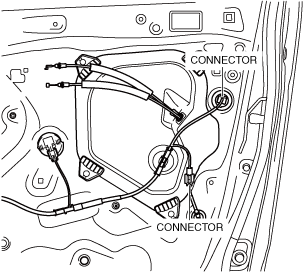

4.  Disconnect the connectors.

a30zzw00002590

5.  Remove the fasteners.

a30zzw00002591

Caution

•  When removing the service hole cover, insert the remover tool so as not to damage the seal rubber.

6.  Detach the service hole cover tabs from the body using a remover tool.

7.  Remove the clips.

a30zzw00002592

8.  Remove the grommet.

9.  Disconnect the door lock knob cable and inner handle cable from the service hole cover.

10.  Remove the service hole cover. (See Service hole cover installation note.)

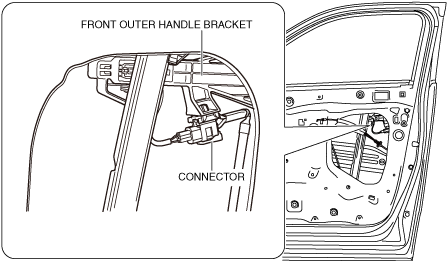

11.  Disconnect the connectors. (With advanced keyless entry system)

a30zzw00002593

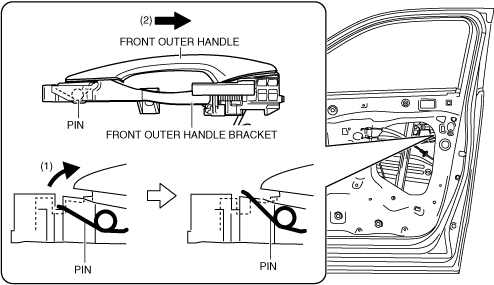

12.  While pulling the front outer handle bracket pin in the direction of arrow (1) shown in the figure, pull the front outer handle in the direction of arrow (2) and detach the front outer handle bracket pin from the front outer handle.

a30zzw00002594

13.  Remove the front outer handle in the direction of the arrow shown in the figure. (See Front outer handle installation note.)

a30zzw00002595

14.  Remove the service hole cover.

a30zzw00002596

15.  Loosen the screw.

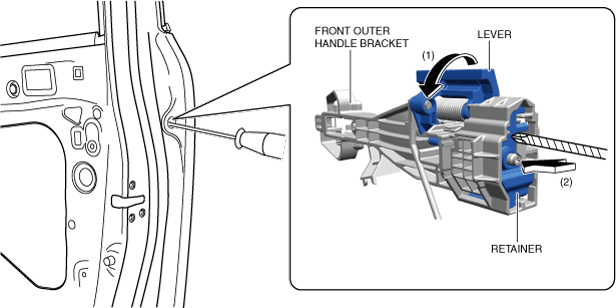

16.  While moving the lever in the direction of arrow (1) shown in the figure, push the retainer in the direction of arrow (2) using a tape-wrapped screwdriver, and then secure the lever.

a30zzw00002597

17.  Remove the cap. (See Cap installation note.)

a30zzw00002598

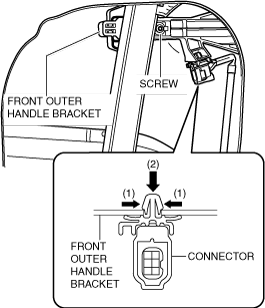

18.  While pressing the tabs of the clip in the direction of arrows (1) shown in the figure, pull the connector in the direction of arrow (2) to detach it from the front outer handle bracket. (With advanced keyless entry system)

a30zzw00002599

19.  Loosen the screw.

Note

•  The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.

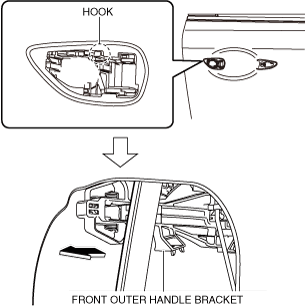

20.  Pull the front outer handle bracket in the direction of the arrow shown in the figure and detach the front outer handle bracket hooks from the body.

a30zzw00002600

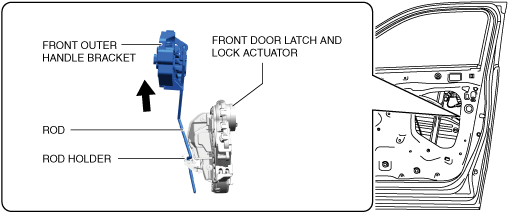

21.  Lift the front outer handle bracket in the direction of the arrow shown in the figure and pull out the rod from the rod holder. (See Front outer handle bracket installation note.)

a30zzw00002601

22.  Remove the front outer handle bracket.

23.  Remove the handle sheet.

a30zzw00002602

24.  Install in the reverse order of removal.

Cap installation note

1.  Tighten the screw while holding the cap, and return the retainer to its original position.

a30zzw00002603

Front outer handle installation note

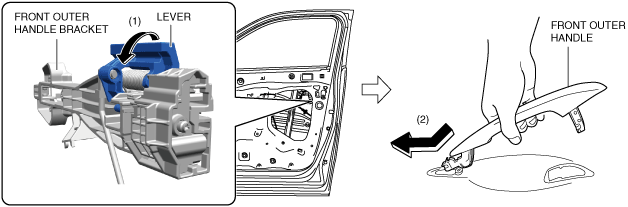

1.  While holding the front outer handle bracket, move the lever in the direction of arrow (1) as shown in the figure, and attach the front outer handle in the direction of arrow (2).

a30zzw00002604

Front outer handle bracket installation note

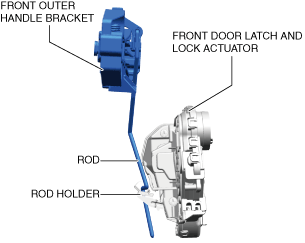

1.  Move the rod back and forth and verify that it is inserted into the rod holder hole.

a30zzw00002605

Service hole cover installation note

1.  When installing the service hole cover, verify that the seal rubber is not wet.

a30zzw00002606

•  If the seal rubber or a tab is damaged, replace the service hole cover.

TYPE B

Driver's side

1.  Fully close the front door glass.

2.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts.

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

(3)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(4)  Front inner handle (See FRONT INNER HANDLE REMOVAL/INSTALLATION.)

(5)  Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

4.  Remove the service hole cover.

a30zzw00007419

5.  Loosen the screw.

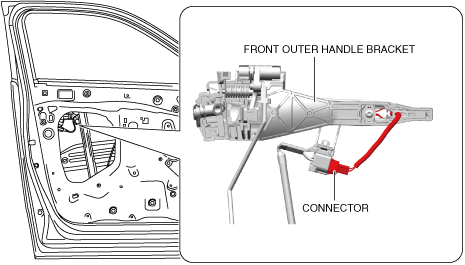

6.  Disconnect the connectors. (With advanced keyless entry system)

a30zzw00007420

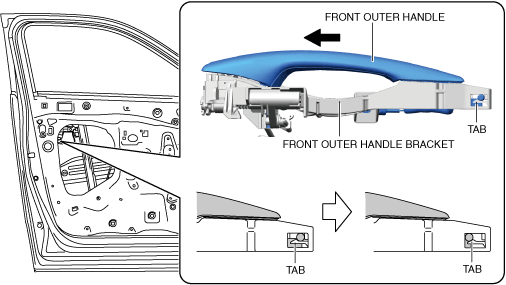

7.  Pull the front outer handle in the direction of the arrow shown in the figure, and detach the front outer handle bracket tab from the front outer handle.

a30zzw00007421

8.  Remove the front outer handle in the direction of the arrow shown in the figure.

a30zzw00007422

9.  Remove the cap.

a30zzw00007423

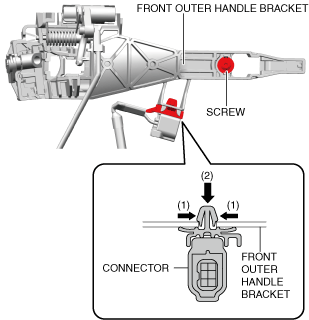

10.  While pressing the tabs of the clip in the direction of arrows (1) shown in the figure, pull the connector in the direction of arrow (2) to detach it from the front outer handle bracket. (With advanced keyless entry system)

a30zzw00007424

11.  Loosen the screw.

Note

•  The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.

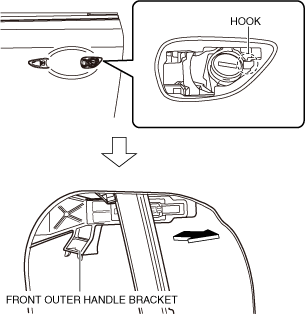

12.  Pull the front outer handle bracket in the direction of the arrow shown in the figure and detach the front outer handle bracket hook from the body.

a30zzw00007425

13.  Remove the front outer handle bracket and front door key cylinder as a single unit.

14.  Remove the front door key cylinder. (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)

15.  Remove the handle sheet.

a30zzw00007426

16.  Install in the reverse order of removal.

Passenger's side

1.  Fully close the front door glass.

2.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts.

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(3)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(4)  Front inner handle (See FRONT INNER HANDLE REMOVAL/INSTALLATION.)

4.  Disconnect the connectors.

a30zzw00007427

5.  Remove the fasteners.

a30zzw00007428

Caution

•  When removing the service hole cover, insert the remover tool so as not to damage the seal rubber.

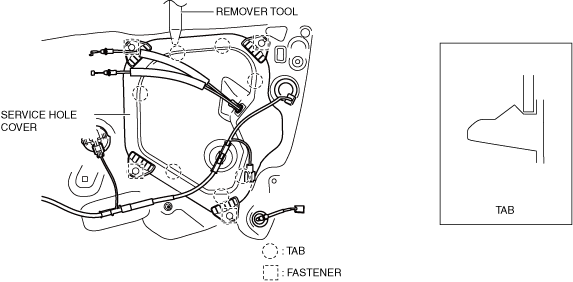

6.  Detach the service hole cover tabs from the body using a remover tool.

7.  Remove the clips.

a30zzw00007429

8.  Remove the grommet.

9.  Disconnect the door lock knob cable and inner handle cable from the service hole cover.

10.  Remove the service hole cover. (See Service hole cover installation note.)

11.  Remove the service hole cover.

a30zzw00007430

12.  Loosen the screw.

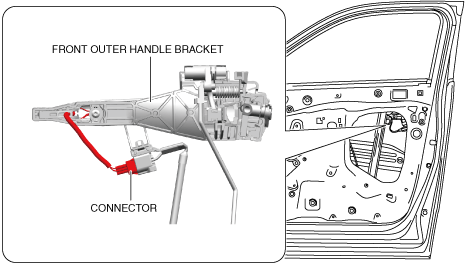

13.  Disconnect the connectors. (With advanced keyless entry system)

a30zzw00007431

14.  Pull the front outer handle in the direction of the arrow shown in the figure, and detach the front outer handle bracket tab from the front outer handle.

a30zzw00007432

15.  Remove the front outer handle in the direction of the arrow shown in the figure.

a30zzw00007433

16.  Remove the cap.

a30zzw00007434

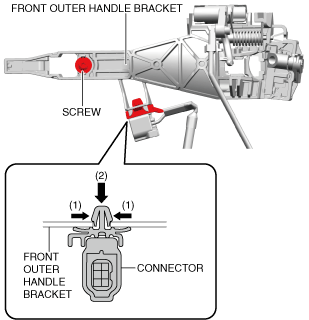

17.  While pressing the tabs of the clip in the direction of arrows (1) shown in the figure, pull the connector in the direction of arrow (2) to detach it from the front outer handle bracket. (With advanced keyless entry system)

a30zzw00007435

18.  Loosen the screw.

Note

•  The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.

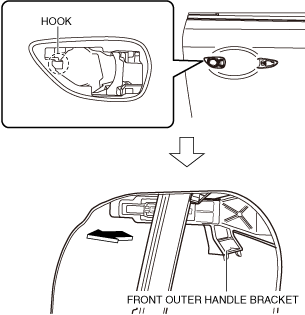

19.  Pull the front outer handle bracket in the direction of the arrow shown in the figure and detach the front outer handle bracket hooks from the body.

a30zzw00007436

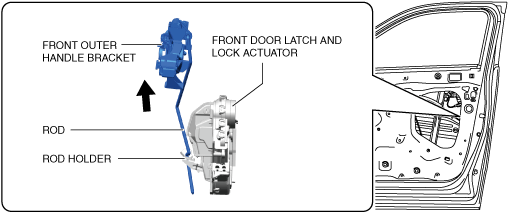

20.  Lift the front outer handle bracket in the direction of the arrow shown in the figure and pull out the rod from the rod holder. (See Front outer handle bracket installation note.)

a30zzw00007437

21.  Remove the front outer handle bracket.

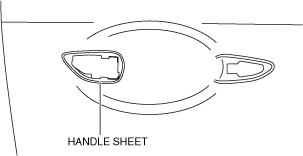

22.  Remove the handle sheet.

a30zzw00007438

23.  Install in the reverse order of removal.

Front outer handle bracket installation note

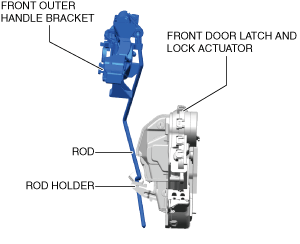

1.  Move the rod back and forth and verify that it is inserted into the rod holder hole.

a30zzw00007439

Service hole cover installation note

1.  When installing the service hole cover, verify that the seal rubber is not wet.

a30zzw00007440

•  If the seal rubber or a tab is damaged, replace the service hole cover.
