LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION

id091400201800

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Door lock switch (liftgate) (With door lock switch (liftgate)) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION.)

(5)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(6)  Side spoiler (See SIDE SPOILER REMOVAL/INSTALLATION.)

(7)  Rear finisher (See REAR FINISHER REMOVAL/INSTALLATION.)

3.  Disconnect the connectors.

a30zzw00002500

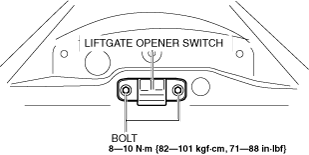

4.  Remove the bolts.

a30zzw00002501

5.  Remove the liftgate opener switch.

6.  Install in the reverse order of removal.

7.  Perform the 360° view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

8.  Perform the rear mount camera aiming. (Without 360° view monitor system, With parking assist system (predicted vehicle path assist lines display type)) (See 360°VIEW MONITOR SYSTEM AIMING.)
