FRONT COMBINATION LIGHT REMOVAL/INSTALLATION

id091800700200

Note

•  Fogging or condensation on the inside of the front combination lights may occur due to a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights. However, it has no effect on the light performance because the temperature inside the front combination lights rises after illuminating the headlights or a period of time has elapsed.

•  The front combination light cannot be disassembled.

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper.(See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

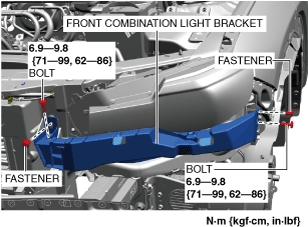

3.  Remove the bolt.

a30zzw00002960

4.  Remove the fasteners.

5.  Remove the front combination light bracket.

Caution

•  When removing the front combination light from the body, it could interfere with the body and cause scratching or damage to the body. When removing the front combination light from the body, apply protective tape to the body.

6.  To prevent scratches or damage, apply protective tape to the positions shown in the figure.

a30zzw00002961

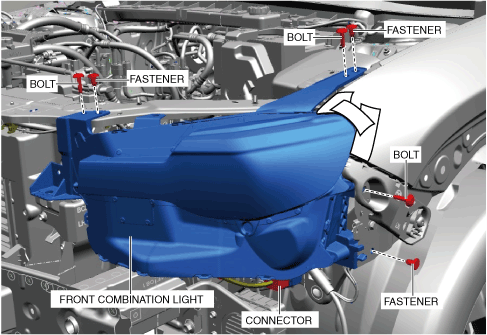

7.  Disconnect the connector.

a30zzw00002962

8.  Remove the bolts. (See Bolt Installation Note.)

9.  Remove the fasteners. (See Fastener Installation Note.)

10.  Pull the front combination light in the direction of the arrow shown in the figure and remove it.

a30zzw00002963

11.  Install in the reverse order of removal.

12.  Adjust the headlight aiming.(See HEADLIGHT AIMING [(E)].)

13.  Perform the 360°view monitor system aiming. (with 360°view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

14.  Perform the front radar sensor/front side radar sensor aiming. (With front side radar sensor) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)

15.  Perform the front radar sensor aiming. (Without front side radar sensor) (See FRONT RADAR SENSOR AIMING.)

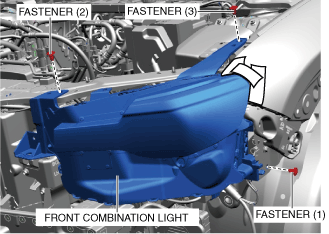

Fastener Installation Note

1.  Install in the order of fastener (1), fastener (2), then fastener (3).

a30zzw00002964

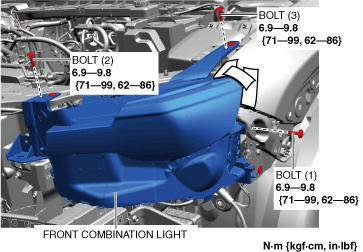

Bolt Installation Note

1.  Install in the order of bolt (1), bolt (2), then bolt (3).

a30zzw00002965
