HEADLIGHT CLEANER COVER REMOVAL/INSTALLATION

id091900702100

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper.(See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

3.  Remove the headlight cleaner nozzle. (See HEADLIGHT CLEANER NOZZLE REMOVAL/INSTALLATION.)

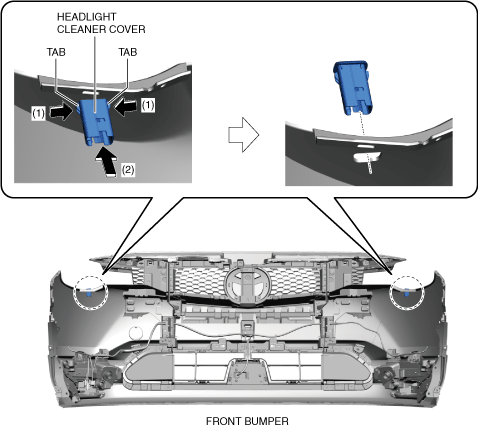

4.  While pressing the tab of the headlight cleaner cover in the direction of arrows (1) shown in the figure, move the headlight cleaner cover in the direction of arrow (2) shown in the figure, and detach the headlight cleaner cover from the front bumper.

a30zzw00003896

5.  Remove the headlight cleaner cover.

6.  Install in the reverse order of removal.

7.  Perform the 360°view monitor system aiming. (with 360°view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

8.  Perform the front radar sensor/front side radar sensor aiming. (With front side radar sensor) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)

9.  Perform the front radar sensor aiming. (Without front side radar sensor) (See FRONT RADAR SENSOR AIMING.)
