HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION

id091900702200

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper.(See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

3.  Remove the protector.(See FRONT BUMPER DISASSEMBLY/ASSEMBLY [(E)].)

4.  Disconnect the joint pipe from the headlight cleaner nozzle. (See HEADLIGHT CLEANER NOZZLE REMOVAL/INSTALLATION.)

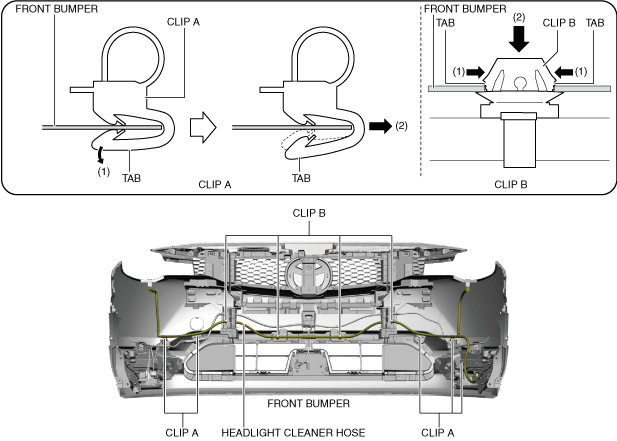

5.  While moving the clip A tabs in the direction of arrows (1) shown in the figure, move clip A in the direction of arrow (2) and remove it from the front bumper.

a30zzw00001636

6.  While pressing the tabs of clip B in the direction of arrows (1) shown in the figure, move clip B in the direction of arrow (2) and remove it from the front bumper.

7.  Remove the headlight cleaner hose.

8.  Install in the reverse order of removal.

9.  Perform the 360°view monitor system aiming. (with 360°view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

10.  Perform the front radar sensor/front side radar sensor aiming. (With front side radar sensor) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)

11.  Perform the front radar sensor aiming. (Without front side radar sensor) (See FRONT RADAR SENSOR AIMING.)
