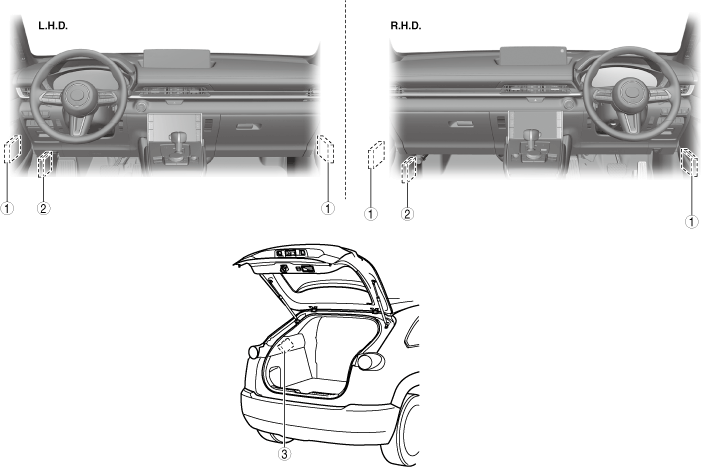

CONTROL SYSTEM LOCATION INDEX

id094000700000

a30zzw00002657

1	Door-electrical supply unit (See DOOR-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION.) (See DOOR-ELECTRICAL SUPPLY UNIT INSPECTION [(E)].)
2	Body control module (BCM) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) (See BODY CONTROL MODULE (BCM) INSPECTION [(E)].) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION [(E)].) (See VEHICLE CONTROL MODULE (VCM) INITIAL SETTING.)
3	Electrical supply unit (ESU) (See ELECTRICAL SUPPLY UNIT (ESU) REMOVAL/INSTALLATION.) (See ELECTRICAL SUPPLY UNIT (ESU) INSPECTION [(E)].) (See ELECTRICAL SUPPLY UNIT (ESU) BRACKET REMOVAL/INSTALLATION.)
