DTC P0D29:00 [BATTERY CHARGE CONTROL MODULE (e-SKYACTIV (E))]

id300204060012

Warning

<<High voltage>>

•  If the necessary measures are not taken before servicing an electric vehicle, it could cause electrical shock and result in serious injury or, in the worst case, death. Before servicing the electric vehicle, refer to [HIGH VOLTAGE SERVICE CAUTIONS] in the general information and implement the necessary measures. (See HIGH VOLTAGE SERVICE CAUTIONS.)

Outline

System malfunction location	Battery charge control module internal AC current sensor: Low input
Detection condition	•  The battery charge control module (onboard charger) detects that the AC current value that is input to the AC current sensor inside the battery charge control module (onboard charger) is low.
Fail-safe	•  Stops charging
Possible cause	•  Charging equipment malfunction •  Charge port assembly connector or terminals malfunction •  Battery charge control module (onboard charger) connector or terminals malfunction •  Open circuit in battery charge control module (onboard charger) AC charge circuit (+) or AC charge circuit (−) •  Poor insulation between AC charge circuit (+) and AC charge circuit (−) for battery charge control module (onboard charger) •  Charge port assembly malfunction •  Battery charge control module (onboard charger) malfunction ―  Battery charge control module internal current sensor malfunction

Diagnostic Procedure

Warning

<<High voltage>>

•  If necessary measures such as wearing the correct protective gear are not taken when inspecting or removing/installing the high voltage parts, it could cause electrical shock and result in serious injury or, in the worst case, death.

•  Before inspecting or removing/installing the high voltage parts, refer to [HIGH VOLTAGE SERVICE CAUTIONS] in the general information and [High Voltage Part Inspection and Removal/Installation Notes] of the high voltage system service cautions and implement the necessary measures and preparations. (See HIGH VOLTAGE SERVICE CAUTIONS.) (See HIGH VOLTAGE SYSTEM SERVICE CAUTIONS.)

Step	Inspection	Results	Action
1	RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION •  Record the snapshot data. Note •  Recording can be facilitated using the screen capture function of the PC.	—	Go to the next step.
2	DETERMINE IF MALFUNCTION IS ON CHARGING EQUIPMENT SIDE •  Perform quick charging using charging equipment other than that used when the DTC was output. •  Perform the DTC inspection for the battery charge control module. (See DTC INSPECTION.) •  Is DTC P0D29:00 displayed as a current malfunction? Note •  If DTC P0D29:00 is displayed as a past malfunction, a malfunction in the charging equipment used when the DTC was output can be considered.	Yes	Go to the next step.
		No	The system is normal. (Explain to the customer that there is a possibility that a malfunction was detected due to a charging equipment malfunction.) Go to the repair completion verification 2.
3	INSPECT CHARGE PORT ASSEMBLY CONNECTOR FOR MALFUNCTION Warning <<High voltage>> •  Wear insulated gloves when working on a high voltage system. •  Remove the service plug. (See SERVICE PLUG REMOVAL/INSTALLATION.) •  After 10 min have elapsed after removing the service plug, perform a zero voltage verification at the voltage detection point of the junction box No.3 to verify that there is no electrical charge in the high voltage circuit. •  Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) •  Are the connector and terminal normal?	Yes	Go to the next step.
		No	Replace the charge port assembly, then go to the repair completion verification 1. (See CHARGE PORT ASSEMBLY REMOVAL/INSTALLATION.)
4	INSPECT BATTERY CHARGE CONTROL MODULE (ONBOARD CHARGER) CONNECTOR FOR MALFUNCTION Warning <<High voltage>> •  Wear insulated gloves when working on a high voltage system. •  Verify that the service plug is removed. •  Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) •  Are the connector and terminal normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification 1.
5	INSPECT THE CONNECTION CONDITION BETWEEN BATTERY CHARGE CONTROL MODULE (ONBOARD CHARGER) AND THE HIGH VOLTAGE CABLES Warning <<High voltage>> •  Wear insulated gloves when working on a high voltage system. •  Verify that the service plug is removed. •  Inspect the connection condition between the high voltage battery and high voltage cables. •  Is the connection condition normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification 1.
6	INSPECT FOR POOR INSULATION BETWEEN AC CHARGE CIRCUIT (+) AND AC CHARGE CIRCUIT (−) FOR BATTERY CHARGE CONTROL MODULE (ONBOARD CHARGER) Warning <<High voltage>> •  Wear insulated gloves when working on a high voltage system. •  Verify that the service plug is removed. •  Refer to the high voltage cable insulation inspection and inspect the following cable for poor insulation between the AC charge circuit (+) and AC charge circuit (−). (See HIGH VOLTAGE CABLE INSPECTION [(E)].) •  Is the circuit normal?	Yes	Go to the next step.
		No	Replace the high voltage cable, then go to the repair completion verification 1. (See HIGH VOLTAGE CABLE REMOVAL/INSTALLATION.)

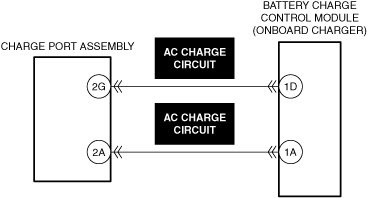

7	INSPECT BATTERY CHARGE CONTROL MODULE (ONBOARD CHARGER) AC CHARGE CIRCUIT (+) OR AC CHARGE CIRCUIT (−) FOR OPEN CIRCUIT Warning <<High voltage>> •  Wear insulated gloves when working on a high voltage system. •  Verify that the service plug is removed. •  Refer to the high voltage cable continuity inspection and inspect the continuity between the following terminals. ―  Charge port assembly side terminal 2G—Battery charge control module (onboard charger) side terminal 1D ―   Charge port assembly side terminal 2A—Battery charge control module (onboard charger) side terminal 1A (See HIGH VOLTAGE CABLE INSPECTION [(E)].) •  Is the circuit normal?	Yes	Go to the next step.
		No	Replace the high voltage cable, then go to the repair completion verification 1. (See HIGH VOLTAGE CABLE REMOVAL/INSTALLATION.)
8	INSPECT CHARGE PORT FOR MALFUNCTION Warning <<High voltage>> •  Wear insulated gloves when working on a high voltage system. •  Verify that the service plug is removed. •  Inspect the applicable part. (See CHARGE PORT INSPECTION.) •  Is the part normal?	Yes	Go to the next step.
		No	Replace the charge port assembry, then go to the repair completion verification 1.
9	INSPECT BATTERY CHARGE CONTROL MODULE (ONBOARD CHARGER) FOR MALFUNCTION DEPENDING ON REPEATABILITY •  Install/connect the part removed/disconnected during the troubleshooting procedure. •  Clear the DTC recorded in the memory. (See CLEARING DTC.) •  Perform quick charging using charging equipment other than that used when the DTC was output. •  Perform the DTC inspection for the Battery charge control module. (See DTC INSPECTION.) •  Is DTC P0D29:00 displayed as a current malfunction?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D. (E)].) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].) If the CAN communication is normal, perform the diagnosis from Step 1. •  If the malfunction recurs, replace the onboard charger, then go to the repair completion verification 2. (See ONBOARD CHARGER REMOVAL/INSTALLATION.)
		No	Go to the repair completion verification 2.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED Warning <<High voltage>> •  Wear insulated gloves when working on a high voltage system. •  Install/connect the part removed/disconnected during the troubleshooting procedure. •  Clear the DTC recorded in the memory. (See CLEARING DTC.) •  Perform quick charging using charging equipment other than that used when the DTC was output. •  Perform the DTC inspection for the Battery charge control module. (See DTC INSPECTION.) •  Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D. (E)].) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].) If the CAN communication is normal, perform the diagnosis from Step 1. •  If the malfunction recurs, replace the onboard charger, then go to the next step. (See ONBOARD CHARGER REMOVAL/INSTALLATION.)
		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTCs DISPLAYED •  Perform the DTC inspection. (See DTC INSPECTION.) •  Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
		No	DTC troubleshooting completed.
