FUEL SYSTEM LOCATION INDEX [SKYACTIV-G 2.0]

id0114z5800100

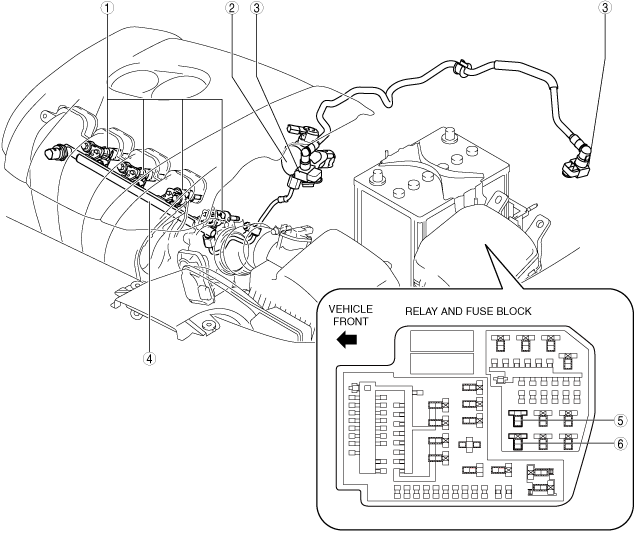

Engine Compartment Side

am3zzw00034269

1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See FUEL INJECTOR INSPECTION [SKYACTIV-G 2.0].)
2	High pressure fuel pump (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See HIGH PRESSURE FUEL PUMP INSPECTION [SKYACTIV-G 2.0].)
3	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
4	Fuel distributor (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
5	Sub relay (See RELAY INSPECTION.)
6	Fuel pump relay (See RELAY INSPECTION.)

Fuel Tank Side

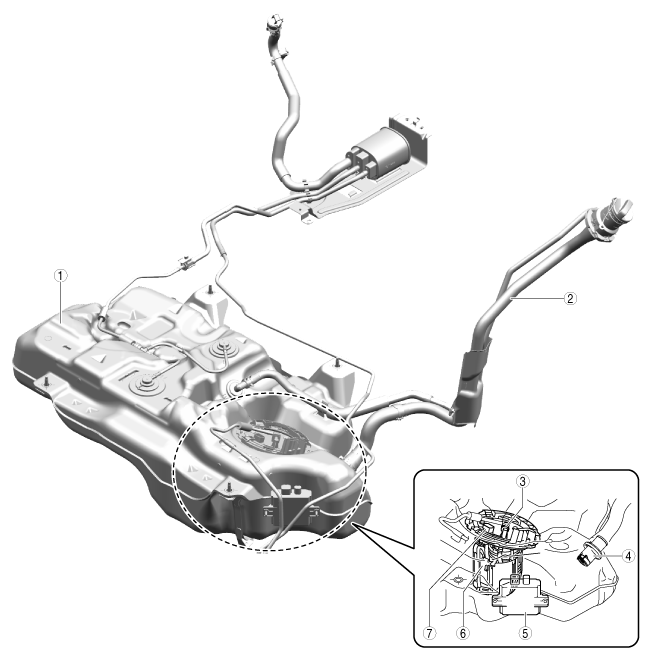

2WD

am30jw00003766

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See FUEL TANK INSPECTION [SKYACTIV-G 2.0].)
2	Fuel-filler pipe (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
3	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
4	Non-return valve (See NON-RETURN VALVE INSPECTION [SKYACTIV-G 2.0].)
5	Fuel pump control module (See FUEL PUMP CONTROL MODULE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See FUEL PUMP CONTROL MODULE INSPECTION [SKYACTIV-G 2.0].)
6	Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
7	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0].) (See FUEL PUMP UNIT INSPECTION [SKYACTIV-G 2.0].)

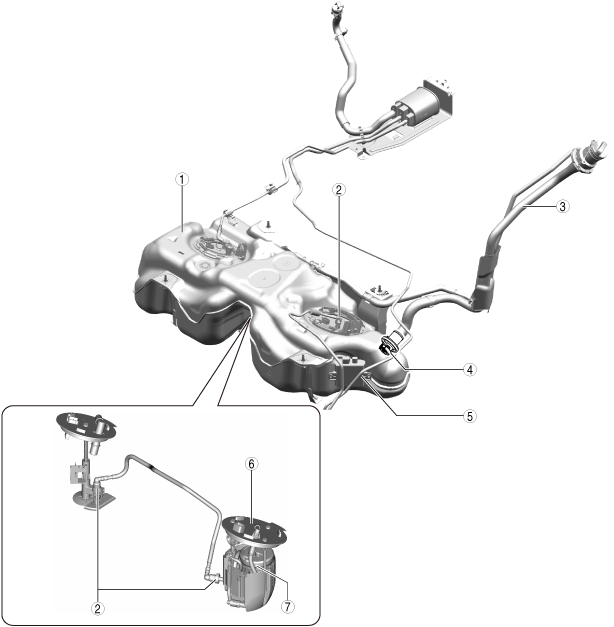

AWD

am30jw00003767

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See FUEL TANK INSPECTION [SKYACTIV-G 2.0].)
2	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
3	Fuel-filler pipe (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
4	Non-return valve (See NON-RETURN VALVE INSPECTION [SKYACTIV-G 2.0].)
5	Fuel pump control module (See FUEL PUMP CONTROL MODULE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See FUEL PUMP CONTROL MODULE INSPECTION [SKYACTIV-G 2.0].)
6	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0].) (See FUEL PUMP UNIT INSPECTION [SKYACTIV-G 2.0].)
7	Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
