FRONT STABILIZER INSTALLATION

id021300700900

Caution
•  If the steering wheel rotates after the steering shaft and the steering gear under carriage are disconnected, the internal parts of the clock spring could be damaged. After disconnecting the steering shaft, secure the steering wheel using tape or cable to prevent it from rotating.
•  Install the front stabilizer being careful of the following so as not to decrease the functionality of the front stabilizer.
―  Do not apply grease to the stabilizer bushing and stabilizer bar contact area.
―  Verify that there is no dirt or oil on the stabilizer bushing and the stabilizer bar.
•  Wipe off any dirt or oil on the stabilizer bushing and the stabilizer bar.
•  Do not allow the dust boot of the front stabilizer control link to touch the body, the front shock absorber and coil spring, and the hand tool. Otherwise, the dust boot of the front stabilizer control link could be damaged.

1.  Install the front stabilizer bracket to the front stabilizer.

am3zzw00023041

2.  After installing the front stabilizer bracket, verify that the positions of the front stabilizer bracket and the front stabilizer bushing are within the range shown in the figure.

am3zzw00023042

H1: 7 mm {0.3 in} or less
H2: 7 mm {0.3 in} or less

3.  Temporarily tighten bolts A and B shown in the figure.

a30zzw00005842

4.  Tighten bolt B.

5.  Tighten bolt A.

6.  Tighten bolt B.

7.  Install the hole cover No.1 and hole cover No.2. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

8.  Install the front crossmember component. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

9.  Connect the ground plate. (See GROUND PLATE DISCONNECTION/CONNECTION.)

10.  Assemble the intermediate shaft (lower side) to the steering gear and linkage. (See INTERMEDIATE SHAFT REMOVAL/INSTALLATION.)

11.  Install the joint cover. (See INTERMEDIATE SHAFT REMOVAL/INSTALLATION.)

12.  Install the floor under cover No.1. (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

13.  Assemble the front lower arm ball joint to the steering knuckle. (See FRONT LOWER ARM REMOVAL/INSTALLATION.)

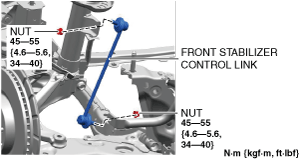

14.  Install the front stabilizer control link.

a30zzw00005843

15.  Assemble the tie-rod end to the steering knuckle. (See TIE-ROD END REMOVAL/INSTALLATION.)

16.  Install the front splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

17.  Install the front mudguard.

a30zzw00005844

18.  Install the front over fender.

a30zzw00005845

19.  Install the front deflector. (See DEFLECTOR REMOVAL/INSTALLATION.)

20.  Install the following parts.

(1)  Front undercover No.1 (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)
(2)  Front undercover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

21.  Install the tunnel cover. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

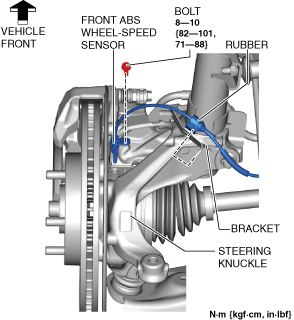

22.  Install the front ABS wheel-speed sensor and the rubber as shown in the figure.

a30zzw00005846

23.  Install the wheels and tires. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

24.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
