DASHBOARD DISASSEMBLY/ASSEMBLY

id091700047400

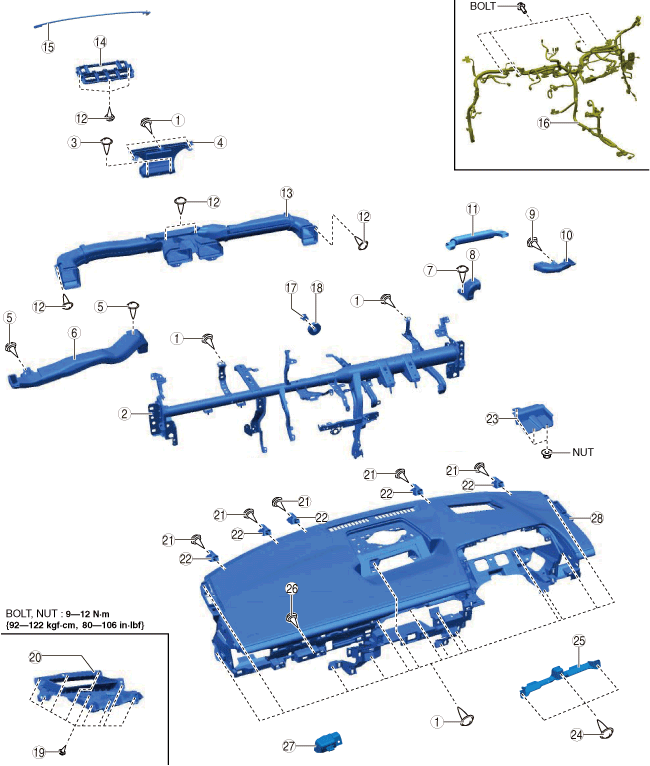

1.  Disassemble in the order shown in the figure.

a30zzw00005971

1	Screw
2	Dashboard frame
3	Screw
4	Duct No.1
5	Screw
6	Demister duct No.1
7	Screw
8	Demister duct No.2
9	Screw
10	Demister duct No.3
11	Demister duct No.4
12	Screw
13	Center duct
14	Duct No.2
15	Seal tape
16	Dashboard wiring harness
17	Member junction
18	Cushion rubber
19	Screw
20	Hole cover
21	Screw
22	Guide pin
23	Dashboard bracket
24	Screw
25	Core pad
26	Screw
27	Lamp case
28	Dashboard

2.  Assemble in the reverse order of disassembly.

Note

•  When replacing the dashboard, remove the following parts and install them to the new dashboard.

1.  Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

2.  Front center speaker (With Bose^®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.)

3.  Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION.)

4.  Active driving display (With active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.)

5.  Driver monitoring camera unit (With driver monitoring system) (See DRIVER MONITORING CAMERA UNIT REMOVAL/INSTALLATION.)

6.  Global positioning system (GPS) antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)
