Diagnostic procedure
|
STEP
|
INSPECTION
|
ACTION
|
|
|---|---|---|---|
|
1
|
INSPECT BATTERY VOLTAGE
• Is the battery terminal voltage normal?
|
Yes
|
Make sure that battery terminal connection is normal.
Go to the next step.
|
|
No
|
Charge or replace the battery, then go to Step 6.
(See BATTERY RECHARGING [L8, LF].)
|
||
|
2
|
INSPECT BATTERY GRAVITY
• Is battery specific gravity as specified?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the battery, then go to Step 6.
|
||
|
3
|
INSPECT CHARGING SYSTEM
• Are the generator and drive belt tensions normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace generator and/or drive belt as necessary, then go to Step 6.
|
||
|
4
|

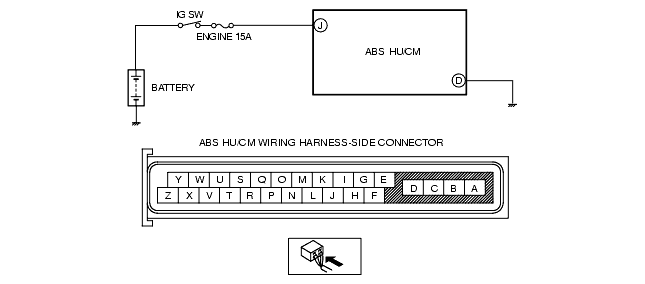

INSPECT ABS HU/CM POWER SUPPLY FOR OPEN CIRCUIT
• Start the engine.
• Measure the voltage between ABS HU/CM terminal J and ground.
• Is the voltage approx. 10 V?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness for open circuit between the ABS HU/CM and ground, then go to Step 6.
|
||
|
5
|
INSPECT ABS HU/CM GROUND FOR POOR GROUND OR OPEN CIRCUIT
• Turn the ignition switch off.
• Measure the resistance between ground and ABS HU/CM terminal D.
• Is the resistance within 0-1 ohm?
|
Yes
|
Go to the next step.
|
|
No
|
If there is no continuity:
• Repair or replace the wiring harness for open circuit between the ABS HU/CM and ground, then go to the next step.
If the resistance is not within 0-1 ohm:
• Repair or replace harness for poor ground, then go to the next step.
|
||
|
6
|
VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the memory.
(See Clearing DTCs Procedures.)
• Start the engine and drive the vehicle at 10 km/h {6.2 mph} or more.
• Is the same DTC present?
|
Yes
|
Replace the ABS HU/CM, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
7
|
VERIFY AFTER REPAIR PROCEDURE
• Are any other DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC Table.)
|
|
No
|
DTC troubleshooting completed.
|
||
