ROOF MOTOR REMOVAL/INSTALLATION
id091600809700
1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)
3. Remove the following parts:
-
(1) Console (See CONSOLE PANEL REMOVAL/INSTALLATION.)
-
(2) Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)
-
(3) Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)
-
(4) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
-
(5) Aeroboard (See AEROBOARD REMOVAL/INSTALLATION.)
-
(6) Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)
-
(7) Back trim (See BACK TRIM REMOVAL/INSTALLATION.)
-
(8) Seat belt upper anchor installation bolt (See SEAT BELT REMOVAL/INSTALLATION.)
-
(9) Power retractable hardtop link bracket (See POWER RETRACTABLE HARDTOP LINK BRACKET REMOVAL/INSTALLATION.)
4. Disconnect the roof motor connector.

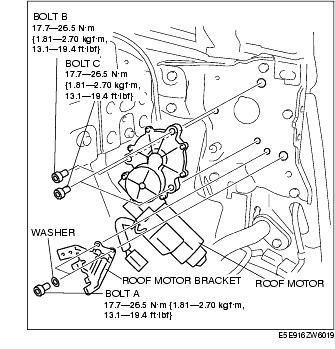

5. Remove the bolts A and washers.
6. Remove the roof motor bracket.
7. Remove the bolts B and C.
8. Remove the roof motor.
9. Install in the reverse order of removal.
