SHOCK ABSORBING PAD REMOVAL/INSTALLATION [DETACHABLE HARDTOP]

1. Remove the detachable hardtop.

2. Remove the following parts:

(1) B-pillar garnish (See DETACHABLE HARDTOP DISASSEMBLY/ASSEMBLY.)

(2) Side lock (See DETACHABLE HARDTOP DISASSEMBLY/ASSEMBLY.)

(3) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL [DETACHABLE HARDTOP], B-PILLAR UPPER TRIM INSTALLATION [DETACHABLE HARDTOP].)

(4) Male wedge cover (See DETACHABLE HARDTOP DISASSEMBLY/ASSEMBLY.)

(5) Top lock cover (See DETACHABLE HARDTOP DISASSEMBLY/ASSEMBLY.)

(6) Headliner (See HEADLINER REMOVAL/INSTALLATION [DETACHABLE HARDTOP].)

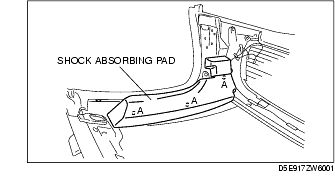

3. Pull the shock absorbing pad rearward and detach clips A.

4. Remove the shock-absorbing pad.

5. Install in the reverse order of removal.
