REAR SPEAKER REMOVAL/INSTALLATION

id092000802400

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3. Remove the following parts:

(1) Console (See CONSOLE REMOVAL/INSTALLATION.)
(2) Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)
(3) Scuff plate (SCUFF PLATE REMOVAL/INSTALLATION.)
(4) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(5) Aeroboard (See AEROBOARD REMOVAL/INSTALLATION.)
(6) Front seat back bar garnish (front) (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)
(7) Back trim (See BACK TRIM REMOVAL/INSTALLATION.)

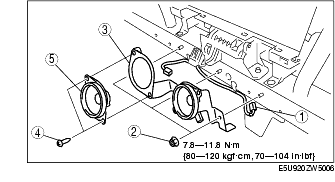

4. Remove in the order indicated in the table.

1
Connector
2
Nut
3
Bracket (with Bose)
Bracket and rear speaker (without Bose)
4
Screw
5
Rear speaker (with Bose)

5. Install in the reverse order of removal.
