EMISSION SYSTEM LOCATION INDEX [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0116zj803700

Engine Compartment Side

amxuuw00005276

1	Ventilation hose (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
2	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See PURGE SOLENOID VALVE INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
3	Catch tank (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See CATCH TANK INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
4	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

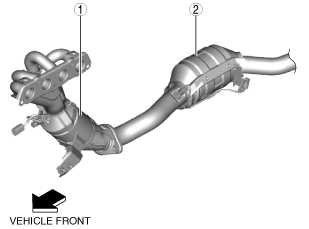

Exhaust System Side

amxuuw00005277

1	WU-TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
2	TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

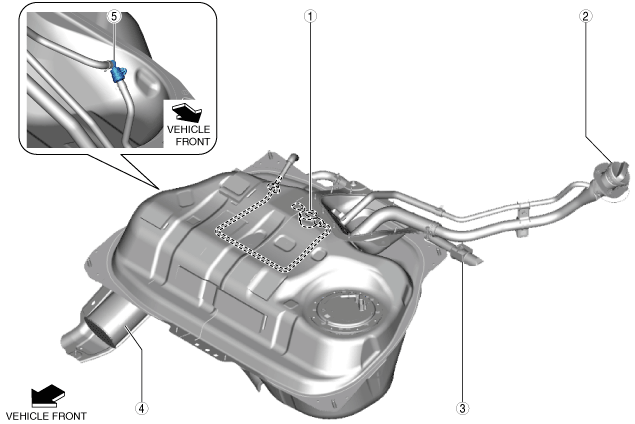

Fuel Tank Side

amxuuw00005279

1	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See ROLLOVER VALVE INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
2	Fuel-filler cap (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
3	Evaporative chamber (See EVAPORATIVE CHAMBER REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See EVAPORATIVE CHAMBER INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
4	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See CHARCOAL CANISTER INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
5	Check valve (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See CHECK VALVE INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
