WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION
id031100800400
1. Remove the front ABS wheel-speed sensor and the bracket from the following parts and set it aside so that it does not interfere with the servicing.
amxuuw00004734
|
2. Remove the front brake hose bracket from the front upper arm. (See FRONT BRAKE HOSE REMOVAL/INSTALLATION [WITH 4-POT OPPOSED PISTON CALIPER].) (See FRONT BRAKE HOSE REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].)
3. Remove the front brake caliper component and suspend it in a place out of the way using a cable. (See FRONT BRAKE DISC REMOVAL/INSTALLATION [WITH 4-POT OPPOSED PISTON CALIPER].) (See FRONT BRAKE DISC REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].)
amxuuw00004735
|
4. Remove the front disc plate. (See FRONT BRAKE DISC REMOVAL/INSTALLATION [WITH 4-POT OPPOSED PISTON CALIPER].) (See FRONT BRAKE DISC REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].)
5. Disconnect the front stabilizer control link from the front lower arm. (See FRONT STABILIZER REMOVAL/INSTALLATION.)

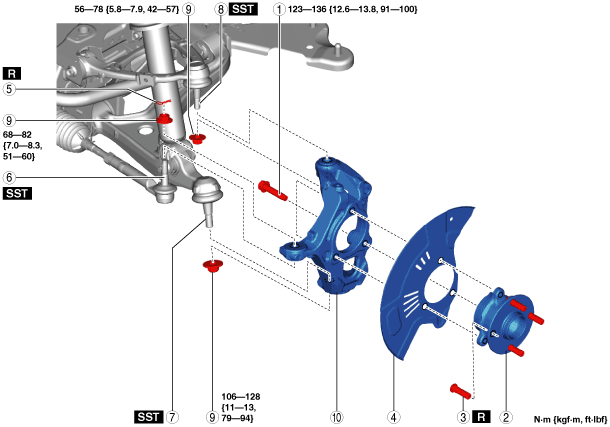

6. Remove in the order shown in the figure.
7. Install in the reverse order of removal.
8. Inspect the front wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT.)
amxuuw00004751
|
|
1
|
Bolt
|
|
2
|
Wheel hub
|
|
3
|
Front wheel hub bolt
|
|
4
|
Dust cover
|
|
5
|
Snap pin
|
|
6
|
Tie-rod end
(See TIE-ROD END REPLACEMENT.)
|
|
7
|
Front lower arm ball joint
|
|
8
|
Front upper arm ball joint
|
|
9
|
Nut
|
|
10
|
Steering knuckle
|
Front Wheel Hub Bolt Removal Note
1. Remove the front wheel hub bolt from the wheel hub using a press.
amxuuw00004736
|
Front Wheel Hub Bolt Installation Note
1. Press in new front wheel hub bolt into the wheel hub using a press.
