DOOR HINGE REMOVAL/INSTALLATION

id091100620900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the wiper arm and blade. (See WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

3.  Disconnect washer hose B from joint pipe A. (See WASHER HOSE REMOVAL/INSTALLATION.)

4.  Remove the following parts:

(1)  Front bumper (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

(2)  Front bumper slider (See FRONT BUMPER SLIDER REMOVAL/INSTALLATION.)

(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(4)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(5)  Side step molding (See SIDE STEP MOLDING REMOVAL.) (See SIDE STEP MOLDING INSTALLATION.)

(6)  Door (See DOOR REMOVAL/INSTALLATION.)

(7)  Front fender insulator (See FRONT FENDER INSULATOR REMOVAL/INSTALLATION.)

(8)  Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)

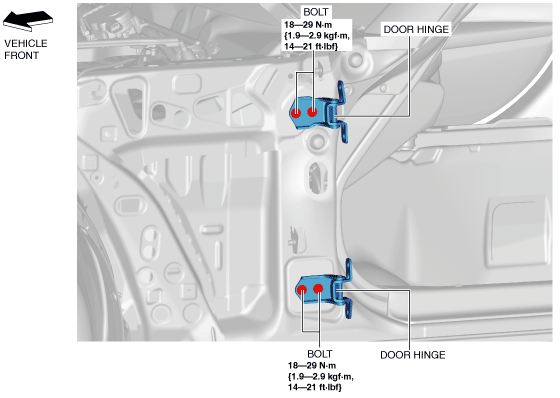

5.  Remove the bolts.

ardjjw00003250

6.  Remove the door hinges.

7.  Install in the reverse order of removal.

8.  Adjust the door. (See DOOR ADJUSTMENT.)
