ULTRASONIC SENSOR SHORT-CORD INSPECTION

id092200037000

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

4.  Remove the following parts:

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(2)  Rear splash shield (See REAR SPLASH SHIELD REMOVAL/INSTALLATION.)

(3)  Rear bumper stay (See REAR BUMPER STAY REMOVAL/INSTALLATION.)

(4)  Rear bumper retainer No.1 (See REAR BUMPER RETAINER No.1 REMOVAL/INSTALLATION.) (See REAR BUMPER INSTALLATION.)

(5)  Rear bumper (See REAR BUMPER REMOVAL.) (See REAR BUMPER INSTALLATION.)

(6)  Ultrasonic sensor short-cord (See ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

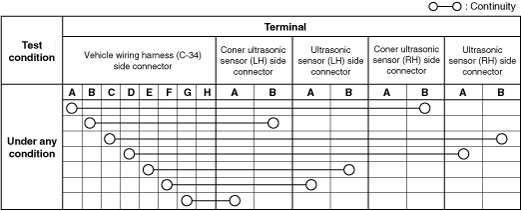

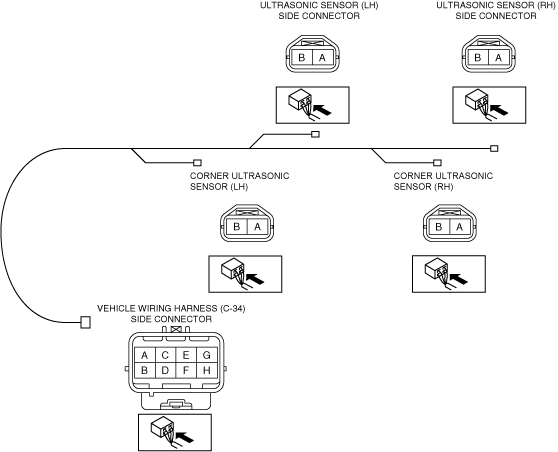

5.  Verify that the continuity between the front ultrasonic sensor short-cord terminals is as indicated in the table.

amxzzw00005690

amxzzw00005691

•  If not as indicated in the table, replace the front ultrasonic sensor short-cord. (See ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)
