FRONT ROOF PANEL REMOVAL/INSTALLATION

id091600720400

1.  Using the retractable hardtop switch, keep the front roof half-open.

amxzzw00004123

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2)  Shift lever knob (MT)

(3)  Shift panel assembly (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(5)  Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

(6)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(7)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(8)  Wind blocker (See WIND BLOCKER REMOVAL/INSTALLATION.)

(9)  Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

(10)  Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)

(11)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(12)  Back trim (See BACK TRIM REMOVAL/INSTALLATION.)

(13)  Rear side trim (See REAR SIDE TRIM REMOVAL/INSTALLATION.)

4.  Remove the seat belt retractor installation bolts and set aside the seat belt retractor. (See SEAT BELT REMOVAL/INSTALLATION.)

5.  Remove the lock bracket. (See LOCK BRACKET REMOVAL/INSTALLATION.)

6.  Remove the retractable hardtop control module from the seat back crossmember assembly and set it aside so that it does not interfere with the servicing. (See RETRACTABLE HARDTOP CONTROL MODULE REMOVAL/INSTALLATION.)

7.  Remove the seat back crossmember assembly. (See SEAT BACK CROSSMEMBER ASSEMBLY REMOVAL/INSTALLATION.)

8.  Remove the roof link assembly. (See ROOF LINK ASSEMBLY REMOVAL/INSTALLATION.)

9.  Remove the front roof link cover. (See FRONT ROOF LINK COVER REMOVAL/INSTALLATION.)

10.  Remove the front headliner. (See FRONT HEADLINER REMOVAL/INSTALLATION.)

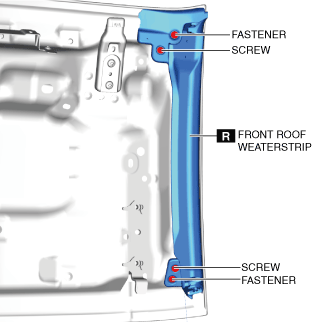

11.  Remove the screws.

amxuuw00007074

12.  Remove the fasteners.

13.  Remove the front roof weatherstrip.

14.  Place alignment marks on the retainer and the front roof panel.

15.  Remove the screws.

amxzzw00004720

16.  Remove the retainer.

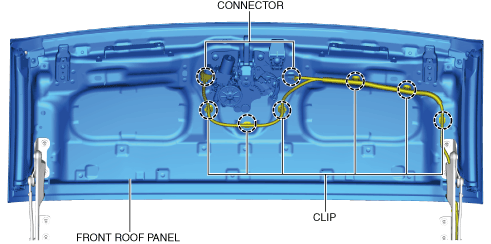

17.  Disconnect the connectors.

amxzzw00004721

18.  Remove the clips.

19.  Place alignment marks on the roof link and the front roof panel.

Note

•  Verify the number of shims because it differs depending on the installation position.

20.  Remove the bolts.

amxzzw00004722

21.  Remove the front roof panel.

22.  Install in the reverse order of removal. (See Front Roof Panel Installation Note.)

Front Roof Panel Installation Note

1.  Install the shim according to the number verified prior to removal.

2.  Install the front roof panel with the alignment marks aligned.

3.  Perform the retractable hardtop adjustment. (See RETRACTABLE HARDTOP ADJUSTMENT.)
