SECURITY AND LOCKS LOCATION INDEX

id091400800100

Locks and Openers

amxzzw00002123

1	Bonnet latch (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION) (See BONNET LATCH SWITCH INSPECTION)
2	Top lock switch (See TOP LOCK SWITCH INSPECTION)
3	Fuel-filler opener lever and cable (See FUEL-FILLER LID OPENER LEVER AND CABLE REMOVAL/INSTALLATION)
4	Door key cylinder (See DOOR KEY CYLINDER REMOVAL/INSTALLATION)
5	Trunk lid opener (See TRUNK LID OPENER REMOVAL/INSTALLATION) (See TRUNK LID OPENER INSPECTION)
6	Door latch and lock actuator (See DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION) (See DOOR LOCK ACTUATOR INSPECTION)
7	Trunk lid opener switch (See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION) (See TRUNK LID OPENER SWITCH INSPECTION)

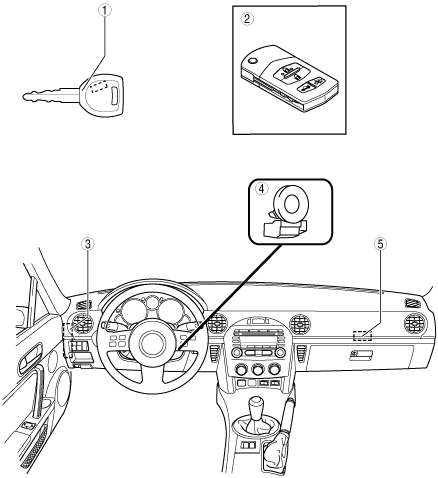

Keyless Entry System and Immobilizer System

amxzzw00002124

1	Key (transponder) (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING)
2	Transmitter (See TRANSMITTER BATTERY REPLACEMENT) (See TRANSMITTER ID CODE REGISTRATION)
3	Keyless control module (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION) (See KEYLESS CONTROL MODULE INSPECTION)
4	Coil antenna (See COIL ANTENNA REMOVAL/INSTALLATION)
5	Keyless receiver (See KEYLESS RECEIVER REMOVAL/INSTALLATION) (See KEYLESS RECEIVER INSPECTION)

Theft-deterrent System

amxzzw00002125

1	Intruder sensor (See INTRUDER SENSOR REMOVAL/INSTALLATION)
2	Theft-deterrent siren (See THEFT-DETERRENT SIREN REMOVAL/INSTALLATION)
