REAR WINDOW GLASS REMOVAL [4SD]

id091200000681

1. Disconnect the negative battery cable.

2. Remove the following parts:

3. Disconnect the filament connector.

4. Set the headliner out of the way.

5. Apply protective tape along the edge of the body.

6. Cut the rear window glass molding lip using a razor.

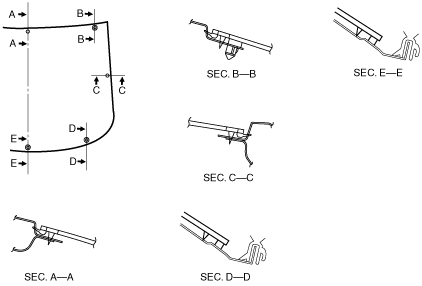

am2ccw00000217

Warning

• Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

Note

• The rear window glass molding is a replacement part.

Not Reusing Rear Window Glass

Note

• For the areas of the sealant that are difficult to cut, use the piano wire and follow the procedure under “Reusing Rear Window Glass”.

1. Cut out the sealant all around the glass using a sealant remover.

am3zzw00002827

2. Remove the sealant by pulling it off.

3. Remove the rear window glass.

Reusing Rear Window Glass

Note

• Before removing the rear window glass from the body, mark the position of the glass by affixing tape to the glass and body panel.

1. Make a hole through the sealant from the inside of the vehicle using an awl, avoiding the pins.

am2ccw00000218

2. Pass the piano wire, cut to sufficient length, through the hole.

am2ccw00000271

Warning

• Using the piano wire with bare hands can cause injury. Always wear gloves when using the piano wire.

3. Wind each end of the piano wire around a bar.

Note

• Use a long sawing action to spread the work over the whole length of the piano wire to prevent it from breaking due to localized heating.

4. Fix one end of the piano wire, and while pulling the other end, cut the sealant around the rear window glass.

am2ccw00000272

Note

• As the upper part of the pin adheres to the sealant, cut it using the piano wire.

5. Cut the pins out.

am3zzw00002831

6. Remove the rear window glass.

7. Mark the seating positions of the pins and remove the pins from the rear window glass.

8. Remove the rear window glass molding from the rear window glass.
