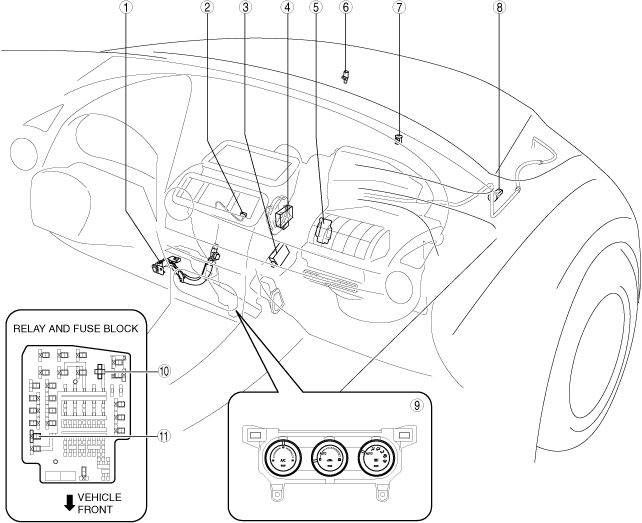

HVAC CONTROL SYSTEM LOCATION INDEX [FULL-AUTO AIR CONDITIONER]

id0740a1803600

am2zzw00013180

1	Cabin temperature sensor (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
2	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
3	Air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
4	Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
5	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
6	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
7	Solar radiation sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
8	Refrigerant pressure sensor (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See REFRIGERANT PRESSURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
9	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)
10	Blower relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
11	A/C relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
