FAN SWITCH INSPECTION [MANUAL AIR CONDITIONER]
id0740a2801300
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (2) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (3) Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
- (4) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
- (5) Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
- (6) Center console tray (See CENTER CONSOLE TRAY REMOVAL/INSTALLATION.)
- (7) Shift bezel (See SHIFT BEZEL REMOVAL/INSTALLATION.)
- (8) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
- (9) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F65M-R].)(See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)
- (10) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (11) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
- (12) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
- (13) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
- (14) CD player (with CD player) (See CD PLAYER REMOVAL.)(See CD PLAYER INSTALLATION.)
- (15) DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.)(See DVD/CD PLAYER INSTALLATION.)
- (16) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
- (17) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (18) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
- (19) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
- (20) Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)
3. Remove the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

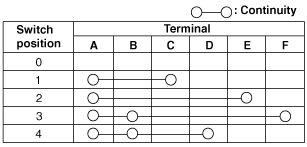

4. Verify that the continuity between the fan switch terminals as indicated in the table.
-
• If there is any malfunction, replace the fan switch.
