ELECTRICAL SUPPLY UNIT (ESU)

id094000003100


Purpose

•  The electrical supply unit (ESU) performs control of the headlights, map light, door lock actuators, rear wiper, front washer and rear washer based on the input signal from the BCM.

Function

•  The control content of the electrical supply unit (ESU) is as follows.

Control table

Control

Content

Reference
Exterior lighting
The ESU illuminates/turns off the headlights based on the signal from the BCM.
(See EXTERIOR LIGHTING SYSTEM.)
Front map light
The ESU illuminates/turns off the front map light based on the signal from the BCM.
(See FRONT MAP LIGHT.)
Cargo compartment light
The ESU illuminates/turns off the cargo compartment light based on the signal from the BCM.
(See CARGO COMPARTMENT LIGHT.)
Power door lock
The ESU operates the door lock actuators based on the signal from the BCM.
(See POWER DOOR LOCK SYSTEM.)
Liftgate opener
The ESU operates the liftgate opener actuator based on the signal from the BCM.
(See LIFTGATE OPENER SYSTEM.)
Rear wiper
The ESU operates the rear wiper motor based on the signal from the BCM.
(See REAR WIPER/WASHER SYSTEM.)
Windshield/rear washer
The ESU operates the washer motor based on the signal from the BCM.
(See WINDSHIELD WIPER/WASHER SYSTEM.)
(See REAR WIPER/WASHER SYSTEM.)


Structural View

•  The electrical supply unit (ESU) is located on the inside of the front side trim.

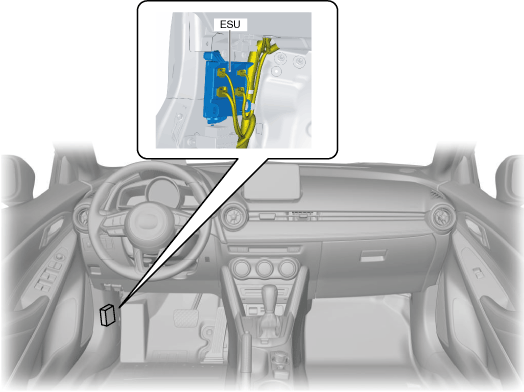

L.H.D.

am2zzn00004851

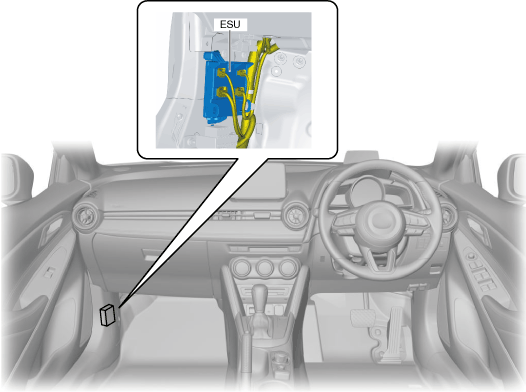

R.H.D.

am2zzn00004441

System wiring diagram

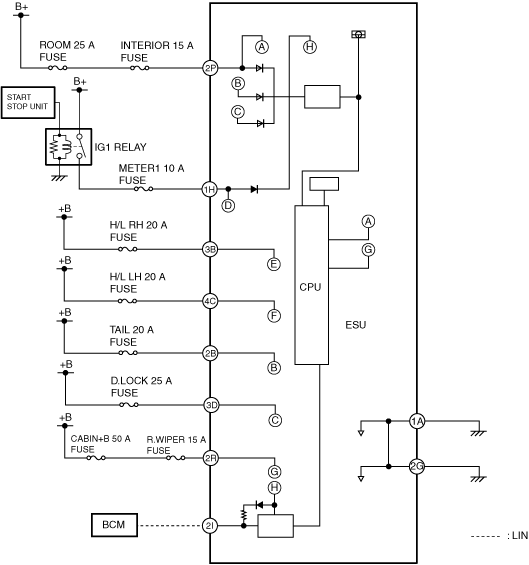

Power supply, earth, LIN communication

am2zzn00004442

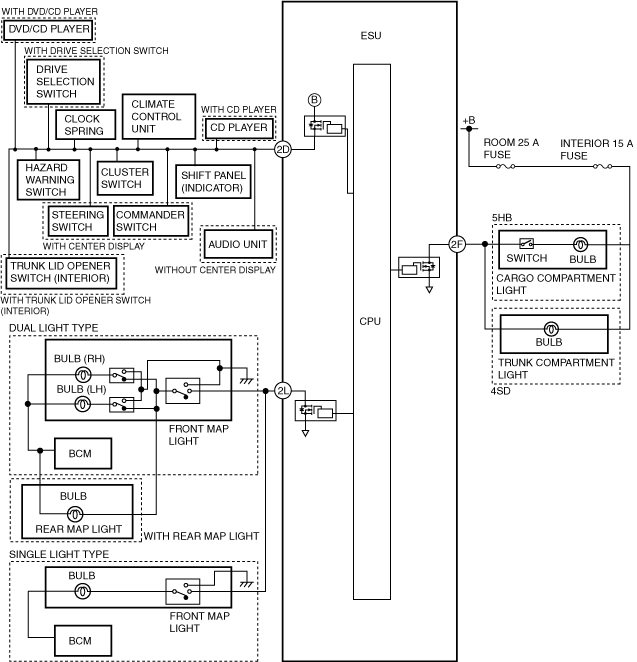

Map light, cargo compartment light

am2zzn00004852

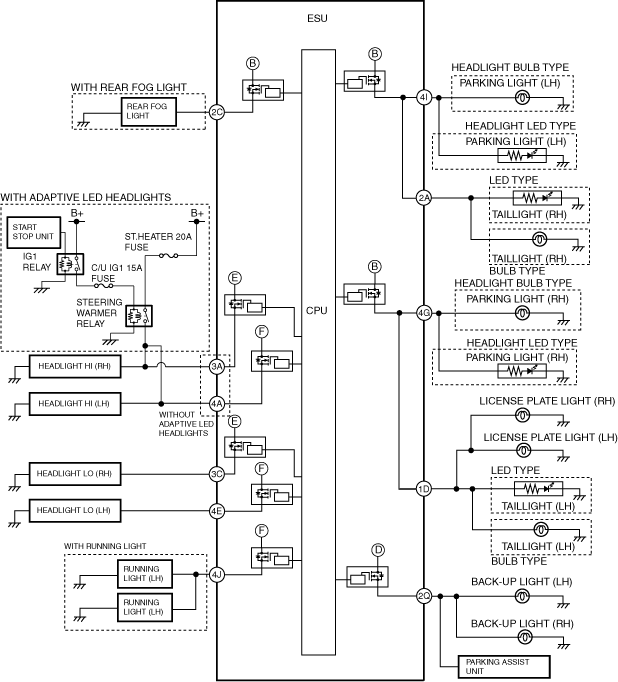

Exterior lighting, parking sensor

am2zzn00004949

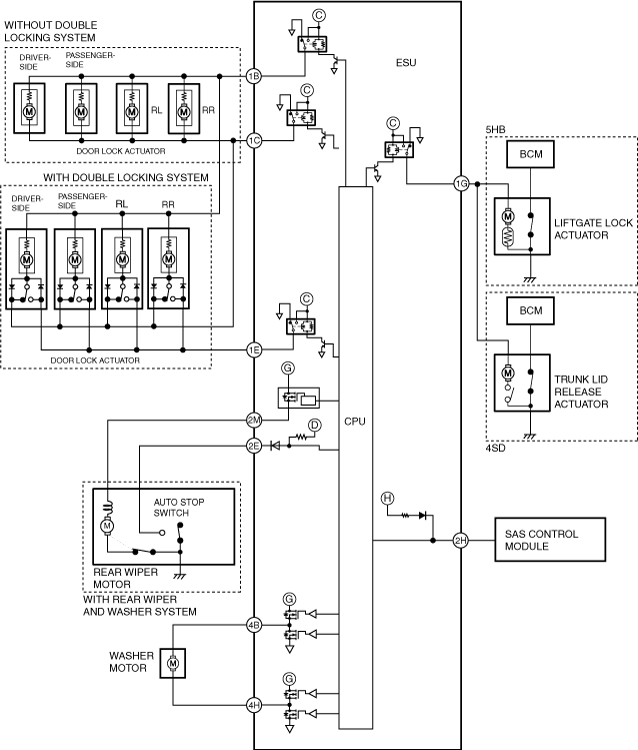

Door lock, rear wiper

am2zzn00004995

Operation


For the operation of each control, refer to the following system operations.

•  Exterior lighting system control (See EXTERIOR LIGHTING SYSTEM.)
•  Front map light control (See FRONT MAP LIGHT.)
•  Cargo compartment light control (See CARGO COMPARTMENT LIGHT.)
•  Power door lock system control (See POWER DOOR LOCK SYSTEM.)
•  Liftgate opener system control (See LIFTGATE OPENER SYSTEM.)
•  Windshield washer control (See WINDSHIELD WIPER/WASHER SYSTEM.)
•  Rear wiper/washer system control (See REAR WIPER/WASHER SYSTEM.)


Fail-safe


Exterior lighting system

•  If any of the following malfunctions occurs, the electrical supply unit (ESU) turns the TNS(Parking Ligths) and headlights LO on, and stops other exterior light control.
―  Malfunction in CPU in electrical supply unit (ESU) detected
―  LIN communication error (cannot communicate with BCM, receives malfunction signal from BCM)


Room light control system

•  If any of the following malfunctions occurs, the electrical supply unit (ESU) turns the room light off.
―  LIN communication error (cannot communicate with BCM, receives malfunction signal from BCM)


Power door lock system

•  Not applicable


Liftgate opener system

•  Not applicable


Rear wiper system

•  If any of the following malfunctions occurs, the electrical supply unit (ESU) stops the rear wiper.
―  Malfunction in CPU in electrical supply unit (ESU) detected
―  LIN communication error (cannot communicate with BCM, receives malfunction signal from BCM)
―  Auto stop switch malfunction (wiper operation status unknown) while wiper is operating is detected


Front/rear washer system

•  When the electrical supply unit (ESU) receives a windshield washer operation request signal from the BCM for a continuous 1 min or more, it stops the front/rear washer control.
