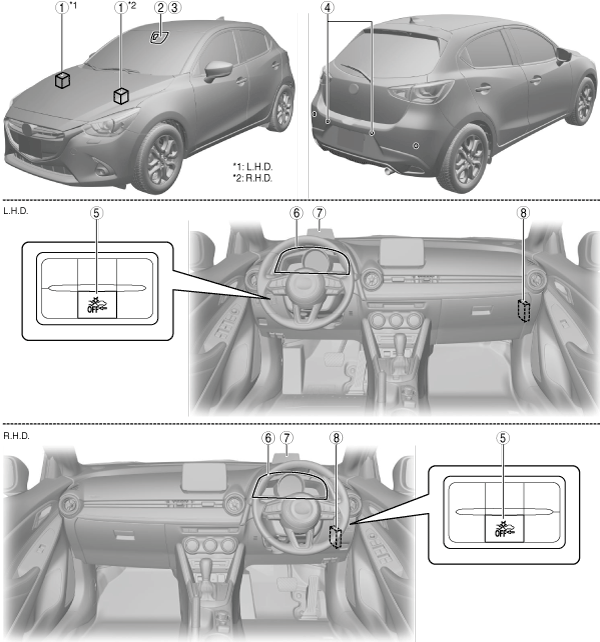

SMART CITY BRAKE SUPPORT [REVERSE] (SCBS R) LOCATION INDEX

id152000006000

am2zzw00014434

1	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION [L.H.D.].) (See DSC HU/CM REMOVAL/INSTALLATION [R.H.D.].) (See DSC HU/CM INSPECTION.)
2	Forward sensing camera (FSC) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.) (See FORWARD SENSING CAMERA (FSC) CLIP REMOVAL/INSTALLATION.) (See FORWARD SENSING CAMERA (FSC) COVER REMOVAL/INSTALLATION.) (See FORWARD SENSING CAMERA (FSC) SHORT-CORD REMOVAL/INSTALLATION.) (See FORWARD SENSING CAMERA (FSC) SHORT-CORD INSPECTION.) (See FORWARD SENSING CAMERA (FSC) AIMING.) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING READ/WRITE FUNCTION).) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING AS-BUILT DATA).)
3	Laser sensor (With laser sensor) (See LASER SENSOR REMOVAL/INSTALLATION.) (See LASER SENSOR INSPECTION.)
4	Ultrasonic sensor (See ULTRASONIC SENSOR REMOVAL/INSTALLATION.) (See ULTRASONIC SENSOR INSPECTION.)
5	Smart city brake support (SCBS) OFF switch (Without center display) (See SMART CITY BRAKE SUPPORT (SCBS) OFF SWITCH REMOVAL/INSTALLATION.) (See SMART CITY BRAKE SUPPORT (SCBS) OFF SWITCH INSPECTION.)
6	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION).) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA).) (See INSTRUMENT CLUSTER OPERATION RECORD.) (See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE.) (See INSTRUMENT CLUSTER DATA RESET PROCEDURE.)
7	Active driving display (With active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.) (See ACTIVE DRIVING DISPLAY INSPECTION.)
8	Parking assist unit (See PARKING ASSIST UNIT REMOVAL/INSTALLATION.) (See PARKING ASSIST UNIT INSPECTION.)
