CONVENTIONAL BRAKE SYSTEM LOCATION INDEX [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)]

id0411001876g8

L.H.D.

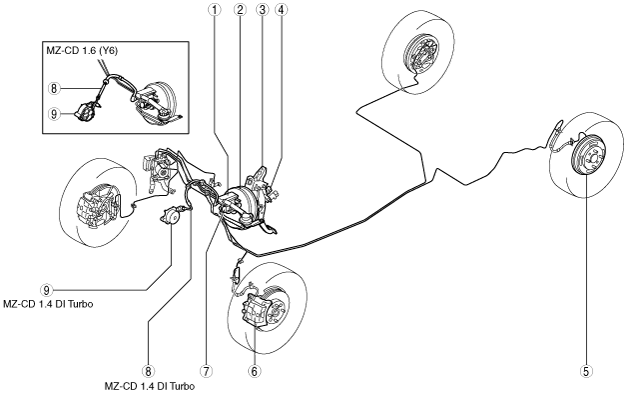

am2zzw00003878

1	Brake fluid (See AIR BLEEDING.)
2	Power brake unit (See POWER BRAKE UNIT INSPECTION.) (See POWER BRAKE UNIT REMOVAL/INSTALLATION (L.H.D.).)
3	Brake pedal (See BRAKE PEDAL INSPECTION.) (See BRAKE PEDAL REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)].)
4	Brake switch (See BRAKE SWITCH INSPECTION [MTX].)
5	Rear brake (drum) (See REAR BRAKE (DRUM) INSPECTION.) (See REAR BRAKE (DRUM) REMOVAL/INSTALLATION.) (See WHEEL CYLINDER DISASSEMBLY/ASSEMBLY.) (See BRAKE HOSE (REAR) REMOVAL/INSTALLATION.)
6	Front brake (disc) (See FRONT BRAKE (DISC) INSPECTION.) (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION.) (See DISC PAD (FRONT) REPLACEMENT.) (See CALIPER (FRONT) DISASSEMBLY/ASSEMBLY.) (See BRAKE HOSE (FRONT) REMOVAL/INSTALLATION.)
7	Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION [L.H.D.].) (See BRAKE FLUID LEVEL SENSOR INSPECTION.)
8	Vacuum line (See VACUUM LINE INSPECTION [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)].) (See VACUUM HOSE REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].) (See VACUUM HOSE REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
9	Vacuum pump (See VACUUM PUMP REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].) (See VACUUM PUMP REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

R.H.D.

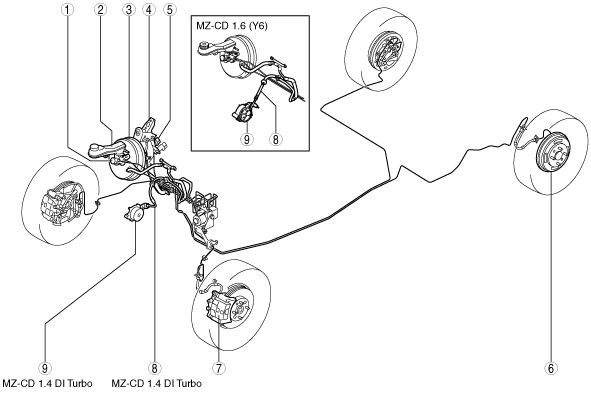

am2zzw00003879

1	Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION [R.H.D.].) (See BRAKE FLUID LEVEL SENSOR INSPECTION.)
2	Brake fluid (See AIR BLEEDING.)
3	Power brake unit (See POWER BRAKE UNIT INSPECTION.) (See POWER BRAKE UNIT REMOVAL/INSTALLATION (R.H.D.) [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)].)
4	Brake pedal (See BRAKE PEDAL INSPECTION.) (See BRAKE PEDAL REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)].)
5	Brake switch (See BRAKE SWITCH INSPECTION [MTX].)
6	Rear brake (drum) (See REAR BRAKE (DRUM) INSPECTION.) (See REAR BRAKE (DRUM) REMOVAL/INSTALLATION.) (See WHEEL CYLINDER DISASSEMBLY/ASSEMBLY.) (See BRAKE HOSE (REAR) REMOVAL/INSTALLATION.)
7	Front brake (disc) (See FRONT BRAKE (DISC) INSPECTION.) (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION.) (See DISC PAD (FRONT) REPLACEMENT.) (See CALIPER (FRONT) DISASSEMBLY/ASSEMBLY.) (See BRAKE HOSE (FRONT) REMOVAL/INSTALLATION.)
8	Vacuum line (See VACUUM LINE INSPECTION [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)].) (See VACUUM HOSE REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].) (See VACUUM HOSE REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
9	Vacuum pump (See VACUUM PUMP REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].) (See VACUUM PUMP REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
