CONVENTIONAL BRAKE SYSTEM LOCATION INDEX [ZJ, ZY]

id0411001876h1

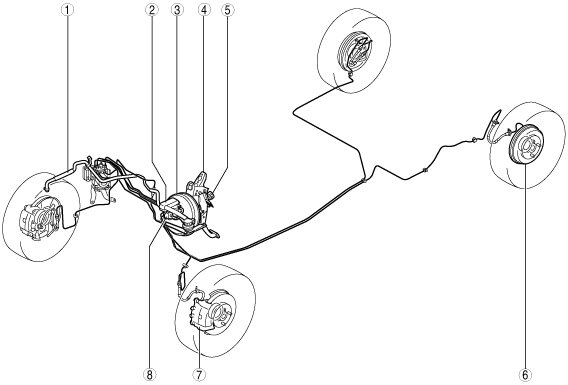

L.H.D.

am2zzw00003870

1	Vacuum line (See VACUUM LINE INSPECTION [ZJ, ZY].) (See VACUUM HOSE REMOVAL/INSTALLATION [ZJ, ZY].)
2	Brake fluid (See AIR BLEEDING.)
3	Power brake unit (See POWER BRAKE UNIT INSPECTION.) (See POWER BRAKE UNIT REMOVAL/INSTALLATION (L.H.D.).)
4	Brake pedal (See BRAKE PEDAL INSPECTION.) (See BRAKE PEDAL REMOVAL/INSTALLATION [ZJ, ZY].)
5	Brake switch (See BRAKE SWITCH INSPECTION [MTX].) (See BRAKE SWITCH INSPECTION [ATX].)
6	Rear brake (drum) (See REAR BRAKE (DRUM) INSPECTION.) (See REAR BRAKE (DRUM) REMOVAL/INSTALLATION.) (See WHEEL CYLINDER DISASSEMBLY/ASSEMBLY.) (See BRAKE HOSE (REAR) REMOVAL/INSTALLATION.)
7	Front brake (disc) (See FRONT BRAKE (DISC) INSPECTION.) (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION.) (See DISC PAD (FRONT) REPLACEMENT.) (See CALIPER (FRONT) DISASSEMBLY/ASSEMBLY.) (See BRAKE HOSE (FRONT) REMOVAL/INSTALLATION.)
8	Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION [L.H.D.].) (See BRAKE FLUID LEVEL SENSOR INSPECTION.)

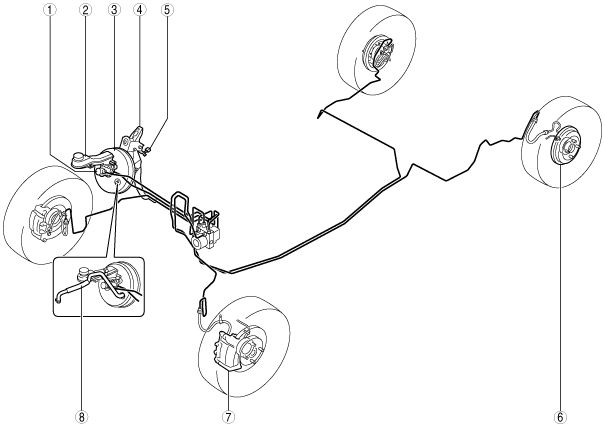

R.H.D.

am2zzw00003871

1	Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION [R.H.D.].)
2	Brake fluid (See AIR BLEEDING.)
3	Power brake unit (See POWER BRAKE UNIT INSPECTION.) (See POWER BRAKE UNIT REMOVAL/INSTALLATION (R.H.D.) [ZJ, ZY].)
4	Brake pedal (See BRAKE PEDAL INSPECTION.) (See BRAKE PEDAL REMOVAL/INSTALLATION [ZJ, ZY].)
5	Brake switch (See BRAKE SWITCH INSPECTION [MTX].) (See BRAKE SWITCH INSPECTION [ATX].)
6	Rear brake (drum) (See REAR BRAKE (DRUM) INSPECTION.) (See REAR BRAKE (DRUM) REMOVAL/INSTALLATION.) (See WHEEL CYLINDER DISASSEMBLY/ASSEMBLY.) (See BRAKE HOSE (REAR) REMOVAL/INSTALLATION.)
7	Front brake (disc) (See FRONT BRAKE (DISC) INSPECTION.) (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION.) (See DISC PAD (FRONT) REPLACEMENT.) (See CALIPER (FRONT) DISASSEMBLY/ASSEMBLY.) (See BRAKE HOSE (FRONT) REMOVAL/INSTALLATION.)
8	Vacuum line (See VACUUM LINE INSPECTION [ZJ, ZY].) (See VACUUM HOSE REMOVAL/INSTALLATION [ZJ, ZY].)
