DTC P0708:00

id050200817200

DTC P0708:00

TR switch circuit high input

DETECTION CONDITION

•  The PCM detects that input voltage from the TR switch is more than 4.78 V for 100 s when the following conditions are met.

―  Vehicle speed: more than 20 km/h {12 mph}

―  Engine speed: more than 530 rpm

Diagnostic support note:

•  This is a continuous monitor (CCM).

•  The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.

•  The HOLD indicator light flashes.

•  PENDING CODE is available.

•  FREEZE FRAME DATA is available.

•  The DTC is stored in the PCM memory.

POSSIBLE CAUSE

•  TR switch malfunction

•  Connector or terminal malfunction

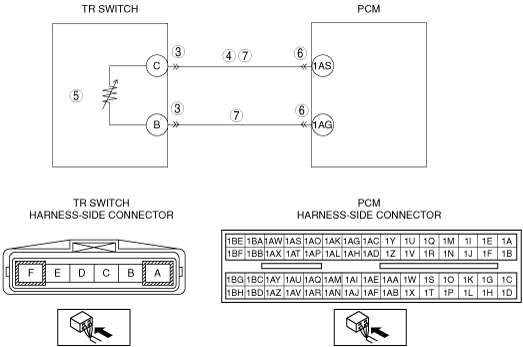

•  Open circuit in wiring harness between TR switch terminal C and PCM terminal 1AS

•  Short to power supply in wiring harness between TR switch terminal C and PCM terminal 1AS

•  Open circuit in wiring harness between TR switch terminal B and PCM terminal 1AG

•  PCM malfunction

DTC P0708:00	TR switch circuit high input
DETECTION CONDITION	• The PCM detects that input voltage from the TR switch is more than 4.78 V for 100 s when the following conditions are met. ― Vehicle speed: more than 20 km/h {12 mph} ― Engine speed: more than 530 rpm Diagnostic support note: • This is a continuous monitor (CCM). • The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle. • The HOLD indicator light flashes. • PENDING CODE is available. • FREEZE FRAME DATA is available. • The DTC is stored in the PCM memory.
POSSIBLE CAUSE	• TR switch malfunction • Connector or terminal malfunction • Open circuit in wiring harness between TR switch terminal C and PCM terminal 1AS • Short to power supply in wiring harness between TR switch terminal C and PCM terminal 1AS • Open circuit in wiring harness between TR switch terminal B and PCM terminal 1AG • PCM malfunction

Diagnostic procedure

STEP	INSPECTION		ACTION
1	VERIFY FREEZE FRAME DATA HAS BEEN RECORDED • Has the FREEZE FRAME DATA been recorded?	Yes	Go to the next step.
1		No	Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2	VERIFY RELATED REPAIR INFORMATION AVAILABILITY • Verify related Service Bulletins and/or on-line repair information availability. • Is any related repair information available?	Yes	Perform repair or diagnosis according to the available repair information. • If the vehicle is not repaired, go to the next step.
2		No	Go to the next step.
3	INSPECT TR SWITCH CONNECTOR FOR POOR CONNECTION • Turn the ignition switch off. • Disconnect the TR switch connector. • Inspect for poor connection (such as damaged/pulled-out pins, corrosion) • Is there any malfunction?	Yes	Repair or replace the terminal, then go to Step 8.
3		No	Go to the next step.
4	INSPECT TR SWITCH CIRCUIT FOR SHORT TO POWER SUPPLY • Turn the ignition switch to the ON position (Engine off). • Measure the voltage between TR switch terminal C (wiring harness-side) and body GND. • Is the voltage B+?	Yes	Repair or replace the wiring harness for a possible short to power supply, then go to Step 8.
4		No	Go to the next step.
5	INSPECT TR SWITCH • Inspect the TR switch. (See TRANSAXLE RANGE (TR) SWITCH INSPECTION.) • Is there any malfunction?	Yes	Adjust or replace the TR switch, then go to Step 8. (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT.) (See TRANSAXLE RANGE (TR) SWITCH REMOVAL.) (See TRANSAXLE RANGE (TR) SWITCH INSTALLATION.)
5		No	Go to the next step.
6	INSPECT PCM CONNECTOR FOR POOR CONNECTION • Turn the ignition switch off. • Disconnect the PCM connector. • Inspect for poor connection (such as damaged/pulled-out pins, corrosion) • Is there any malfunction?	Yes	Repair or replace the terminal, then go to Step 8.
6		No	Go to the next step.
7	INSPECT TR SWITCH CIRCUIT FOR OPEN CIRCUIT • Turn the ignition switch off. • Inspect for continuity between the following circuits: ― TR switch terminal C (wiring harness-side) and PCM terminal 1AS (wiring harness-side) ― TR switch terminal B (wiring harness-side) and PCM terminal 1AG (wiring harness-side) • Is there continuity?	Yes	Go to the next step.
7		No	Repair or replace the wiring harness for a possible open circuit, then go to the next step.
8	VERIFY TROUBLESHOOTING OF DTC P0708:00 COMPLETED • Make sure to reconnect all the disconnected connectors. • Clear the DTC from the memory using the M-MDS. • Perform the following procedure to ensure that the DTC has been resolved: ― Drive the vehicle at more than 20 km/h {12 mph} for 100 s. • Is the same DTC present?	Yes	Replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [ZJ, ZY].)
8		No	Go to the next step.
9	VERIFY AFTER REPAIR PROCEDURE • Perform the “After Repair Procedure”. (See AFTER REPAIR PROCEDURE.) • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE.)
9		No	DTC troubleshooting completed.
