GENERATOR REMOVAL/INSTALLATION [MZ-CD 1.6]

id011744800200

Warning

•  Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.

•  When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.

1.  Disconnect the negative battery cable.

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZ-CD 1.6].)

3.  Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [MZ-CD 1.6].)

4.  Remove the A/C compressor with the cooler hose still connected and secure it using wire or rope so that it is out of the way. (See A/C COMPRESSOR REMOVAL/INSTALLATION [MZ-CD 1.6].)

5.  Remove the charge air cooler hose (inlet and outlet), intake air pipe NO.1, intake shutter valve and intake air pipe NO.2 component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.6].)

6.  Remove the drive belt auto tensioner. (See TIMING BELT REMOVAL/INSTALLATION [MZ-CD 1.6].)

7.  Remove in the order indicated in the table.

8.  Install in the reverse order of removal.

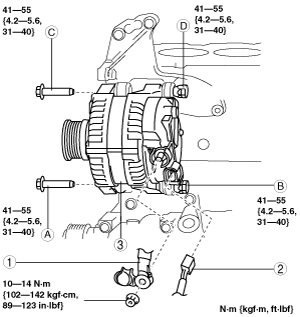

am2zzw00006460

1	Terminal B cable
2	Generator connector
3	Generator (See Generator Removal Note.) (See Generator Installation Note.)

Generator Removal Note

1.  Disconnect the oil pressure switch connector and A/C compressor magnet clutch connector.

2.  Set the wiring harness and wiring harness bracket out of the way.

3.  Loosen the generator fitting bolts B and D slightly.

4.  Remove the generator fitting bolts A and C.

5.  Remove the generator from above the engine compartment.

am2zzw00004023

Generator Installation Note

1.  Match the generator fixing hole and engine side hole, then temporarily tighten the generator installation bolts in the order A, B, C, and D.

2.  Securely tighten the generator installation bolts in the order A, C, B, and D.
