DTC B0010:11/B0010:12/B0010:13/B0010:19/B0010:1A

id080200821200


System Malfunction Location

DTC

System Malfunction Location

M-MDS display
B0010:11
Passenger-side air bag module circuit short to body ground
B0010:12
Passenger-side air bag module circuit short to power supply
B0010:13
Passenger-side air bag module circuit open circuit or resistance high
B0010:19
Short circuit to passenger-side air bag module and other air bag module circuits
B0010:1A
Passenger-side air bag module circuit resistance low


Detection Condition

Warning
•  Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
•  Resistance other than 1.5–3.3 ohms detected in passenger-side air bag module circuit
•  Wiring harness between passenger-side air bag module and SAS control module has malfunction

Possible Causes

•  Passenger-side air bag module connector malfunction
•  Open or short circuit in the wiring harness between the passenger-side air bag module and the SAS control module
•  Passenger-side air bag module malfunction
•  SAS control module malfunction

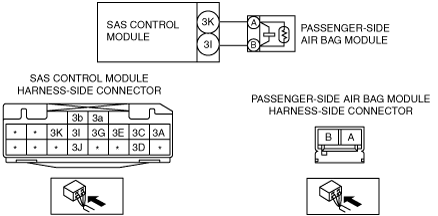

System Wiring Diagram

am2zzw00005586

Diagnostic Procedure

Step

Inspection

Action
1
INSPECT PASSENGER-SIDE AIR BAG MODULE CONNECTOR
Warning
•  Handling the component parts improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components.
•  Switch the ignition to off.
•  Disconnect the negative battery cable and wait for 1 min or more.
•  Remove the glove compartment cover.
•  Disconnect the passenger-side air bag module connector.
•  Inspect the passenger-side air bag module connector. (Corrosion, damage, and disconnected pins)
•  Is there any malfunction of the passenger-side air bag module connector?
Yes
Replace the passenger-side air bag module wiring harness.
No
Go to the next step.
2
INSPECT WIRING HARNESS BETWEEN SAS CONTROL MODULE AND PASSENGER-SIDE AIR BAG MODULE
•  Remove the column cover.
•  Disconnect the clock spring connector.
•  Disconnect the driver and passenger-side side air bag module connectors.
•  Remove the headliner.
•  Disconnect the driver and passenger-side curtain air bag module connectors.
•  Disconnect the driver and passenger-side pre-tensioner seat belt connectors.
•  Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION.)
•   Disconnect the SAS control module connectors.
•  Inspect the wiring harnesses between SAS control module connector terminal 3K and passenger-side air bag module connector terminal A, and SAS control module connector terminal 3I and passenger-side air bag module connector terminal B for the following:
―  Short circuit between terminals
―  Short to body ground
―  Open circuit
Note
•  Inspect for continuity while shaking the wiring harness between the SAS control module and passenger-side air bag module.
•  Is the wiring harness normal?
Yes
Go to the next step.
No
Replace the wiring harness between the SAS control module and the passenger-side air bag module.
3
INSPECT WIRING HARNESS BETWEEN SAS CONTROL MODULE AND PASSENGER-SIDE AIR BAG MODULE FOR SHORT TO POWER SUPPLY
•  Connect the negative battery cable.
•  Switch the ignition to ON with SAS control module connector and passenger-side side air bag module connector disconnected.
•  Measure the voltage SAS control module connector terminal 3K and 3I.
Note
•  Measure the voltage while shaking the wiring harness between the SAS control module and passenger-side air bag module.
•  Is the voltage measured?
Yes
Replace the wiring harness between the SAS control module and the passenger-side air bag module.
No
Go to the next step.
4
INSPECT PASSENGER-SIDE AIR BAG MODULE
•  Switch the ignition to off.
•  Disconnect the negative battery cable and wait for 1 min or more.
•  Connect the SST (Fuel and thermometer checker) or apply 2 ohms resistance to the passenger-side air bag module connector terminals A and B.
•  Set the SST (Fuel and thermometer checker) to 2 ohms.
•  Connect the negative battery cable.
•  Except for the passenger-side air bag module connector, reconnect all disconnected connectors.
•  Switch the ignition to ON.
•  Clear the DTC for the SAS control module using the M-MDS.
•  Perform the DTC inspection for the SAS control module using the M-MDS.
•  Are the same DTCs present?
Yes
Go to the next step.
No
Replace the passenger-side air bag module.
(See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
5
PERFORM SAS CONTROL MODULE DTC INSPECTION
•  Switch the ignition to off.
•  Disconnect the negative battery cable and wait for 1 min or more.
•  Disconnect the SST (Fuel and thermometer checker) or the 2 ohms resistance.
•  Connect the passenger-side air bag module connector.
•  Connect the negative battery cable.
•  Switch the ignition to ON.
•  Clear the DTC for the SAS control module using the M-MDS.
•  Perform the DTC inspection for the SAS control module using the M-MDS.
•  Are the same DTCs present?
Yes
Replace the SAS control module.
(See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
No
DTC troubleshooting completed.
