DTC U3003:16/U3003:17

id080200823200

System Malfunction Location

DTC

System Malfunction Location

M-MDS display

U3003:16

SAS control module power supply voltage decreases (less than 9 V)

U3003:17

SAS control module power supply voltage increases (16 V or more)

DTC	System Malfunction Location
U3003:16	SAS control module power supply voltage decreases (less than 9 V)
U3003:17	SAS control module power supply voltage increases (16 V or more)

Detection Condition

Warning

• Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

• SAS control module power supply voltage is other than 9–15.9 V, and other DTC is detected

Possible Causes

• Battery malfunction

• SAS 10 A fuse malfunction

• Open circuit or short to body ground in wiring harness between ignition switch and SAS control module

• Open circuit in the wiring harness between the SAS control module and body ground

• SAS control module malfunction

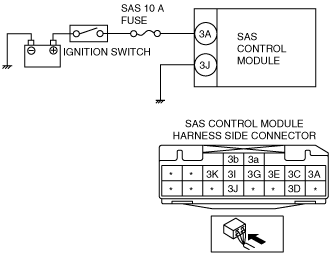

System Wiring Diagram

am2zzw00006391

Diagnostic Procedure

Step

Inspection

Action

1

BATTERY INSPECTION

•  Refer to the battery inspection and inspect the battery.
(See BATTERY INSPECTION [MZR 1.3, MZR 1.5].)

(See BATTERY INSPECTION [MZ-CD 1.6].)

•  Is the battery normal?

Yes

Go to the next step.

No

Replace or charge the battery.

(See BATTERY REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)

(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

(See BATTERY RECHARGING [MZR 1.3, MZR 1.5].)

(See BATTERY RECHARGING [MZ-CD 1.6].)

2

FUSE INSPECTION

•  Switch the ignition to off.

•  Disconnect the negative battery cable and wait 1 min or more.

•  Remove the SAS 10 A fuse.

•  Is the fuse normal?

Yes

Go to the next step.

No

Replace the SAS 10 A fuse.

3

INSPECT WIRING HARNESS BETWEEN IGNITION SWITCH AND SAS CONTROL MODULE

Warning

•  Handling the component parts improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components.
(See AIR BAG SYSTEM SERVICE WARNINGS.)

(See AIR BAG SYSTEM SERVICE CAUTIONS.)

•  Install the SAS 10 A fuse.

•  Remove the column cover.
(See COLUMN COVER REMOVAL/INSTALLATION.)

•  Disconnect the clock spring connector.

•  Remove the glove compartment cover.
(See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.)

•  Disconnect the passenger-side air bag module connector.

•  Disconnect the driver and passenger-side side air bag module connectors.

•  Remove the headliner.
(See HEADLINER REMOVAL/INSTALLATION.) (See HEADLINER REMOVAL/INSTALLATION [3HB].)

•  Disconnect the driver and passenger-side curtain air bag module connectors.

•  Disconnect the driver and passenger-side pre-tensioner seat belt connectors.

•  Remove the rear console.
(See REAR CONSOLE REMOVAL/INSTALLATION.)

•  Disconnect the SAS control module connectors.

•  Connect the negative battery cable.

•  Switch the ignition to ON.

•  Measure the voltage of SAS control module terminal 3A.

Note

•  Measure the voltage while shaking the wiring harness between the SAS control module and ignition switch.

•  Is the voltage between 9–15.9 V?

Yes

Go to the next step.

No

Replace the wiring harness between the SAS control module and ignition switch.

4

INSPECT WIRING HARNESS BETWEEN SAS CONTROL MODULE AND BODY GROUND FOR OPEN CIRCUIT

•  Switch the ignition to off.

•  Disconnect the negative battery cable and wait 1 min or more.

•  Inspect the wiring harness between SAS control module connector terminal 3J and body ground.

Note

•  Inspect for continuity while shaking the wiring harness between the SAS control module and body ground.

•  Is there continuity?

Yes

Go to the next step.

No

Replace the wiring harness between the SAS control module and body ground.

5

PERFORM SAS CONTROL MODULE DTC INSPECTION

•  Reconnect all disconnected connectors.

•  Connect the negative battery cable.

•  Switch the ignition to ON.

•  Clear the DTC for the SAS control module using the M-MDS.
(See CLEARING DTC.)

•  Perform the DTC inspection for the SAS control module using the M-MDS.
(See DTC DISPLAY.)

•  Are the same DTCs present?

Yes

Replace the SAS control module.

(See SAS CONTROL MODULE REMOVAL/INSTALLATION.)

No

DTC troubleshooting completed.

DTC	System Malfunction Location
M-MDS display	System Malfunction Location
U3003:16	SAS control module power supply voltage decreases (less than 9 V)
U3003:17	SAS control module power supply voltage increases (16 V or more)

Step	Inspection		Action
1	BATTERY INSPECTION • Refer to the battery inspection and inspect the battery. (See BATTERY INSPECTION [MZR 1.3, MZR 1.5].) (See BATTERY INSPECTION [MZ-CD 1.6].) • Is the battery normal?	Yes	Go to the next step.
1		No	Replace or charge the battery. (See BATTERY REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY RECHARGING [MZR 1.3, MZR 1.5].) (See BATTERY RECHARGING [MZ-CD 1.6].)
2	FUSE INSPECTION • Switch the ignition to off. • Disconnect the negative battery cable and wait 1 min or more. • Remove the SAS 10 A fuse. • Is the fuse normal?	Yes	Go to the next step.
2		No	Replace the SAS 10 A fuse.
3	INSPECT WIRING HARNESS BETWEEN IGNITION SWITCH AND SAS CONTROL MODULE Warning • Handling the component parts improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.) • Install the SAS 10 A fuse. • Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.) • Disconnect the clock spring connector. • Remove the glove compartment cover. (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.) • Disconnect the passenger-side air bag module connector. • Disconnect the driver and passenger-side side air bag module connectors. • Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.) (See HEADLINER REMOVAL/INSTALLATION [3HB].) • Disconnect the driver and passenger-side curtain air bag module connectors. • Disconnect the driver and passenger-side pre-tensioner seat belt connectors. • Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION.) • Disconnect the SAS control module connectors. • Connect the negative battery cable. • Switch the ignition to ON. • Measure the voltage of SAS control module terminal 3A. Note • Measure the voltage while shaking the wiring harness between the SAS control module and ignition switch. • Is the voltage between 9–15.9 V?	Yes	Go to the next step.
3		No	Replace the wiring harness between the SAS control module and ignition switch.
4	INSPECT WIRING HARNESS BETWEEN SAS CONTROL MODULE AND BODY GROUND FOR OPEN CIRCUIT • Switch the ignition to off. • Disconnect the negative battery cable and wait 1 min or more. • Inspect the wiring harness between SAS control module connector terminal 3J and body ground. Note • Inspect for continuity while shaking the wiring harness between the SAS control module and body ground. • Is there continuity?	Yes	Go to the next step.
4		No	Replace the wiring harness between the SAS control module and body ground.
5	PERFORM SAS CONTROL MODULE DTC INSPECTION • Reconnect all disconnected connectors. • Connect the negative battery cable. • Switch the ignition to ON. • Clear the DTC for the SAS control module using the M-MDS. (See CLEARING DTC.) • Perform the DTC inspection for the SAS control module using the M-MDS. (See DTC DISPLAY.) • Are the same DTCs present?	Yes	Replace the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
5		No	DTC troubleshooting completed.
