SHROUD PANEL REMOVAL/INSTALLATION [MZ-CD 1.6]

id0910004063a4

Caution

•  Because the shroud panel is installed to the bumper reinforcement, support the shroud panel using a jack before removing the bumper reinforcement so as not to apply excessive force to the shroud panel.

•  Since the servicing is performed with the bonnet open, secure the bonnet using a piece of wood to prevent it from falling.

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION)

(2)  Front combination lights (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION)

(3)  Washer tank (See WASHER TANK REMOVAL/INSTALLATION)

(4)  Bumper reinforcement (See BUMPER REINFORCEMENT REMOVAL/INSTALLATION)

(5)  Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION)

(6)  Bonnet latch (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION)

3.  Remove bolts A, then remove the bumper stiffener lower in the direction of the arrow shown in the figure.

am2zzw00001619

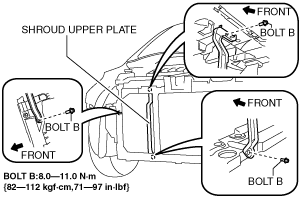

4.  Remove bolts B, then set the shroud upper plate out of the way.

am2zzw00003986

5.  Remove the upper mount rubber bracket in the direction of the arrow in the figure, then remove the upper mount rubber. (See Upper Mount Rubber Bracket Removal Note)

am2zzw00001622

6.  Remove the nuts C.

am2zzw00003995

7.  Set the condenser out of the way.

8.  Release the hooks D in the direction of arrow shown in the figure.

am2zzw00004028

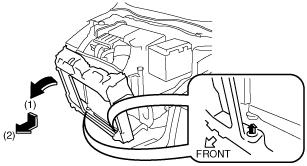

9.  Pull the shroud panel in the direction of arrow (1) in the figure, and remove it in the direction of arrow (2).

am2zzw00001623

Caution

•  Support the lower surface of the radiator with a floor jack to prevent the radiator from falling off after the shroud panel is removed.

10.  Install in the reverse order of removal.

Upper Mount Rubber Bracket Removal Note

1.  Remove the upper mount rubber bracket while pressing down the upper mount rubber bracket tab in the direction of the arrow in the figure.

am2zzw00004031
