SIDE PANEL REMOVAL/INSTALLATION

id091700454000

L.H.D.

1.  Partially peel back the seaming welt.

2.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(4)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].)

(5)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(6)  Front console component (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)

(7)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(8)  Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

3.  Pull the side panel in the direction of the arrow shown in the figure and remove it while detaching clips A and B.

am2zzw00005633

4.  Install in the reverse order of removal.

R.H.D.

1.  Partially peel back the seaming welt.

2.  Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION)

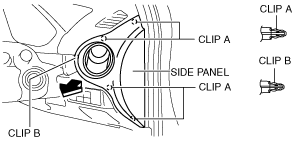

3.  Pull the side panel in the direction of the arrow shown in the figure and remove it while detaching clips A and B.

am2zzw00001809

4.  Install in the reverse order of removal.
