REAR WASHER HOSE REMOVAL/INSTALLATION

id091900475700

1.  Disconnect the negative battery cable.

2.  Remove the mudguard on the left side. (See MUDGUARD REMOVAL/INSTALLATION.)

3.  Disconnect the rear washer hose from the washer tank.

am2zzw00005483

4.  Remove the rear washer hose No.1 from clip A.

am2zzw00005484

5.  Remove the A-pillar trim on the left side. (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

6.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

7.  Remove the grove compartment cover. (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.)

8.  Remove the rear washer hose No.2 from clips B, C, and D.

9.  Remove the rear washer hose No.2 and joint pipe B.

10.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(4)  Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(5)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(6)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(7)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(8)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(9)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(10)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(11)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(12)  Rain sensor cover (vehicles with rain sensor) (See RAIN SENSOR REMOVAL/INSTALLATION.)

(13)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

11.  Remove the joint pipe C.

12.  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

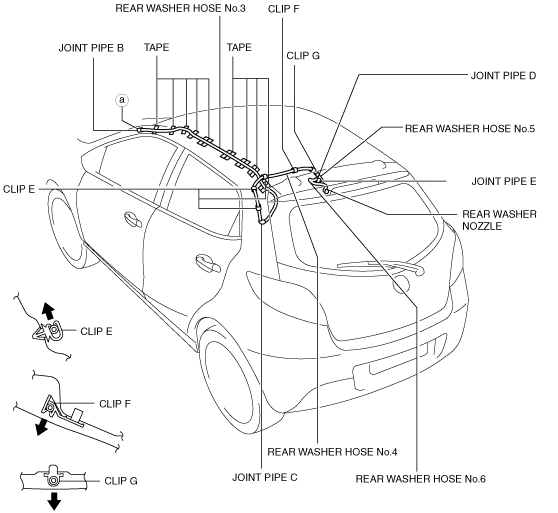

13.  Peel off the tape and remove the rear washer hose No.3.

am2zzw00005713

14.  Remove the rear washer hose No.4 from clips E, F, and G.

15.  Remove the rear washer hose No.4 from joint pipe D.

16.  Remove the rear washer hose no.5 from joint pipe E.

17.  Remove the rear washer nozzle. (See REAR WASHER NOZZLE REMOVAL/INSTALLATION.)

18.  Remove the rear washer hose No.6.

19.  Install in the reverse order of removal.
