PASSENGER SEAT BELT REMINDER REMOVAL/INSTALLATION

id092200997700

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Shift lever knob (MTX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(3)  Front console component (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)

(4)  Glove compartment (vehicles with audio unit) (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.)

(5)  Center panel unit (vehicles without audio unit) (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)

(6)  Center panel (vehicles without audio unit) (See CENTER PANEL REMOVAL/INSTALLATION.)

3.  Remove the screw from the hazard warning switch panel.

am2zzw00000875

4.  Remove the clips A and B.

am2zzw00006882

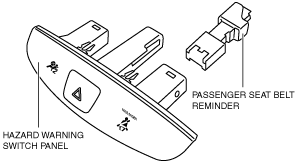

5.  Remove the seat belt reminder from the hazard warning switch panel.

am2zzw00000876

6.  Install in the reverse order of removal.
