CENTER PANEL UNIT REMOVAL/INSTALLATION
id092000800600
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Front scuff plate (L.H.D.) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (2) Front side trim (L.H.D.) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (3) Rear console (L.H.D.) (See REAR CONSOLE REMOVAL/INSTALLATION.)
- (4) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (5) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)
- (6) Front console component (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)
- (7) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
- (8) Passenger’s side lower panel (L.H.D.) (See LOWER PANEL REMOVAL/INSTALLATION.)

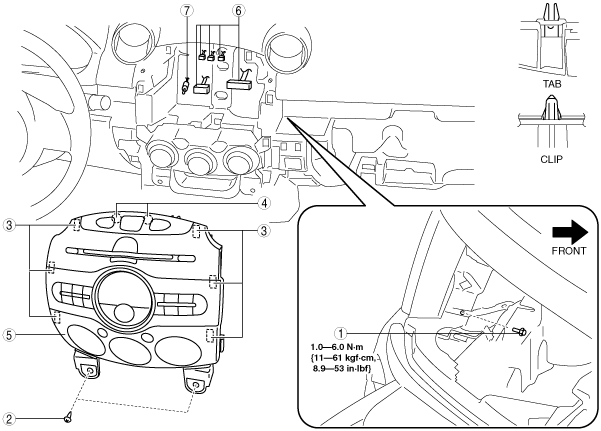

3. Remove in the order indicated in the table.
Without auxiliary jack/USB port
|
1
|
Bolt
|
|
2
|
Screw
|
|
3
|
Clip
|
|
4
|
Tab
|
|
5
|
Center panel unit
|
|
6
|
Connector
|
|
7
|
Antenna feeder
|
With auxiliary jack/USB port
|
1
|
Bolt
|
|
2
|
Screw
|
|
3
|
Clip
|
|
4
|
Tab
|
|
5
|
Center panel unit
|
|
6
|
Connector
|
|
7
|
Antenna feeder
|
4. Install in the reverse order of removal.
-
Caution
-
• If the wiring harness or the antenna feeder is caught between the center panel unit and dashboard, it could cause a malfunction. When installing the center panel unit, make sure that the wiring harness and antenna feeders are not caught between the center panel unit and dashboard.
Center Panel Unit Removal Note
-
Caution
-
• When the center panel unit is removed, clips could interfere with the climate control unit bracket and cause damage. Pull the center panel unit in the direction of the arrow shown in the figure (upward at a
approx. 20° angle) when removing it.
