FUEL FILTER REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)]
id0114c3800000
EURO4 Emission Level
1. Follow “BEFORE SERVICE PRECAUTION” before performing any work operations to prevent fuel from spilling from the fuel system. (See BEFORE SERVICE PRECAUTION [MZ-CD 1.6 (Y6)].)
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
3. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
4. Disconnect the brake vacuum hose. (See VACUUM HOSE REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
5. Disconnect the wiring harness.
6. Remove in the order indicated in the table.

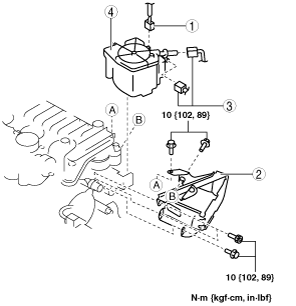

am3zzw00008082
|
|
1
|
Connector
|
|
2
|
Fuel filter protector
|
|
3
|
Fuel hose
|
|
4
|
Fuel filter
|
7. Install in the reverse order of removal.
8. Inspect all related parts by performing “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION [MZ-CD 1.6 (Y6)].)
EURO5 Emission Level
1. Complete the “BEFORE SERVICE PRECAUTION”. (See BEFORE SERVICE PRECAUTION [MZ-CD 1.6 (Y6)].)
2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
3. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
4. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO5 emission level)].)
5. Remove in the order indicated in the table.
am3zzw00012504
|
|
1
|
Quick release connector
|
|
2
|
Connector
|
|
3
|
Fuel filter
|
6. Install in the reverse order of removal.
7. Complete the “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION [MZ-CD 1.6 (Y6)].)
