EGR VALVE REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)]
id0116c3801000
EURO4 Emission Level
1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
3. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)
4. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)
5. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)
6. Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION.)
7. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZ-CD 1.6 (Y6)].)

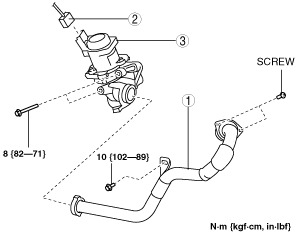

8. Remove in the order indicated in the table.
am2zzw00003947
|
|
1
|
EGR pipe
|
|
2
|
EGR valve connector
|
|
3
|
EGR valve
|
9. Install in the reverse order of removal.
EURO5 Emission Level
1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
2. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO5 emission level)].)
3. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZ-CD 1.6 (Y6)].)
4. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)
5. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)
6. Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION.)
7. Remove the injection pipe (fuel injector side). (See COMMON RAIL REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

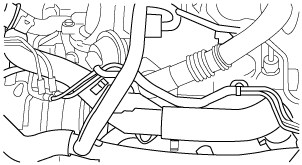

8. Set the components shown in the figure out of the way.
am2zzw00006418
|

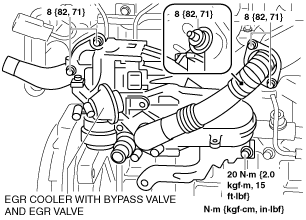

9. Remove the EGR cooler with bypass valve and EGR valve.
am2zzw00006419
|
10. Install in the reverse order of removal.
